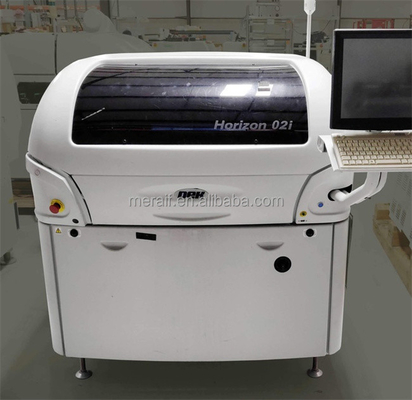

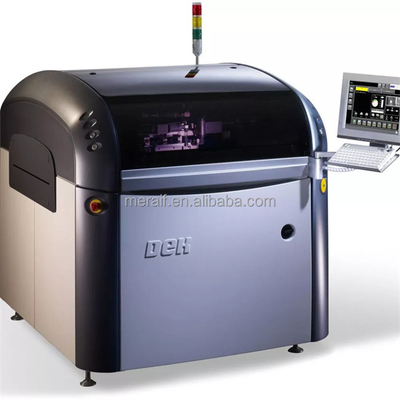

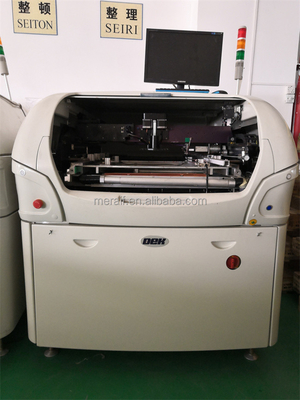

DEK PCB Screen Printer:

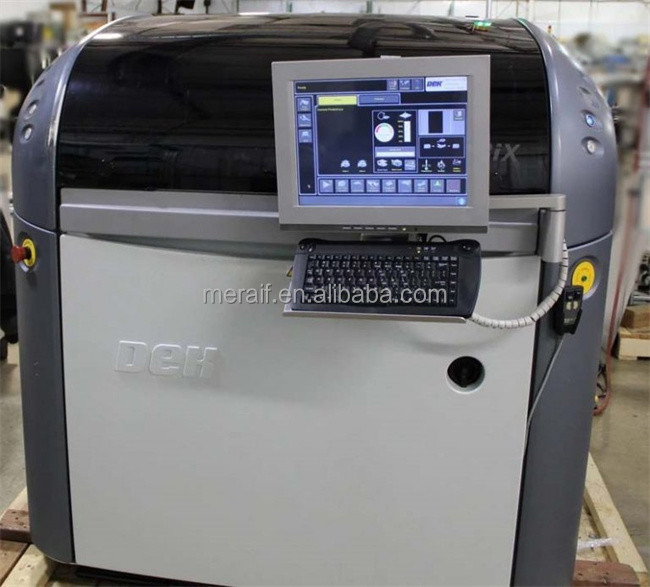

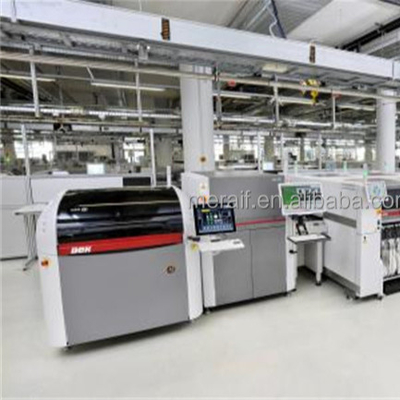

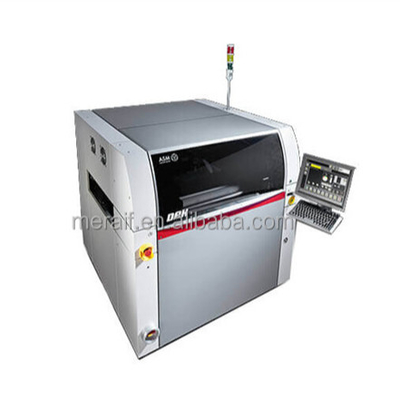

DEK NeoHorizon
With its modular design, the latest generation of our powerful screen printers is customizable for any customer-specific or application-specific requirements. Clamping systems, conveyors, tooling, paste management, verification – the DEK NeoHorizon can be equipped and/or retrofitted with many powerful and precision-enhancing options. All this flexibility can be controlled easily and comfortably with the leading printer software: DEK Instinctiv™ V9.
Two basic printer configurations are available: The DEK NeoHorizon 03 iX with the DEK HawkEye 750 camera system, semi-automatic stencil load and the IUSC understencil cleaning system features a core cycle time of 8.0 seconds and a machine accuracy of ±20 µm @ 2 Cmk for use in high-mix environments. The DEK NeoHorizon 01 iX with its core cycle time of 6,5 seconds and enhanced machine accuracy of ±15 µm @ 2 Cmk was designed for applications with particularly high demands on quality and throughput, for example for 0201 (metric) components. This configuration is equipped with the high-resolution DEK HawkEye 1700 camera, a fully automatic stencil alignment system, and the high-end DEK Cyclone understencil cleaning system.
Back-to-back: Single-track, dual-track, and back to single-track
The innovative design of the new printer and its especially robust cover make it possible to perform all control and maintenance operations from the front of the machine. As a result, you can now position two DEK NeoHorizons back-to-back for a dual-track solution that’s smart, flexible and future-proof. The two machines can nevertheless be configured and operated independently of each other. And when the dual-track solution is no longer needed, you simply separate the two printers and use them on separate lines again. The perfect combination of flexibility and investment protection.
Technical Data:
| Standard configuration | DEK NeoHorizon 01iX | DEK NeoHorizon 03iX |
| Machine alignment capability | ± 12.5 μm @ 2.0 Cmk (6 sigma) | ± 12.5 μm @ 2.0 Cmk (6 sigma) |
| Machine alignment accuracy | ± 15 μm @ 2.0 Cmk (± 6 sigma) | ± 20 μm @ 2.0 Cmk (± 6 sigma) |
| Process alignment accuracy | ± 20 μm @ 2.0 Cpk (6 sigma)# | ± 25 μm @ 2.0 Cpk (6 sigma)# |
| Standard cycle time | 6.5 seconds + process | 8 seconds + process |
| Maximum printing surface | 510 mm (X) × 508,5 mm (Y) |
| User interface | Touchscreen, keyboard and trackball,
DEK Instinctiv V9 software |
| Camera | DEK HawkEye 1700 digital camera
with 2-way LED illumination | DEK HawkEye 750 digital camera
with 2-way LED illumination |
| Squeegee adjustment | Motorized with squeegee pressure feedback |
| Stencil loading | Automatic, incl. squeegee drip catcher | Semi-automatic,incl. squeegee drip catcher |
| Stencil alignment | Motorized (actuators); aligned on
X- and Y-axis and rotation | Motorized (actuators); aligned in
X- and Y-axis and rotation |
| DEK ProFlow | Optional |
| Understencil Cleaning | DEK Cyclone 300 mm/400 mm/515 mm | DEK IUSC 300 mm/400 mm/520 mm |
| Technical documentation | Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled. |
| Compressed air supply | 5-8 bar at ~5 litres/minute |
| Power supply | 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz |
| Weight | Approx. 690 kg depending on selected options |
| * The machine and repeat accuracy check will be conducted using production-typical process variables. The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements. |
