Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Automatic Dek horizon 8 printer :
DEK Horizon 8
DEK’s Horizon platforms offer a comprehensive array of sophisticated features as standard, including optimised printer frame technology, fast product changeover, 2 Cpk print process capability and 6-sigma production performance. The DEK HawkEye 750 camera system, semi-automatic stencil load and the understencil cleaning system features a core cycle time of 12.0 seconds and a machine accuracy of ±25 µm @ 2 Cmk for use in high-mix environments. The 12-second core cycle timeDEK camera Instinctiv T V9 user interface ISCAN™ Intelligent Scalable Control Area Network .Full size stencil frame capacity.Horizon 08 – Best-in-class performance Features:
Process alignment capability 2 Cpk @ +/-25 microns 6-Sigma
Machine alignment capability 2 Cpk @ +/- 12.5 microns 6-Sigma
| Standard configuration | DEK Horizon 08 EE |
| Machine alignment capability | >2.0 Cpk @ +/- 12.5µm, (±6 Sigma) * |
| Process Alignment Capability | >2.0 Cpk @ +/- 25µm, (±6 Sigma) * |
| Standard cycle time | 10 seconds + process |
| Maximum printing surface | 508 mm (X) × 508 mm (Y) |
| User interface | Touchscreen, keyboard and trackball, DEK Instinctiv V9 software |
| Camera | DEK HawkEye 1700 digital camera with 2-way LED illumination |
| Squeegee adjustment | Motorized with squeegee pressure feedback |
| Stencil loading | Automatic, incl. squeegee drip catcher |
| Stencil alignment | Motorized (actuators); aligned on X- and Y-axis and rotation |
| DEK ProFlow | Optional |
| Understencil Cleaning | DEK Cyclone 300 mm/400 mm/515 mm |
| Technical documentation | Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled. |
| Compressed air supply | 5-8 bar at ~5 litres/minute |
| Power supply | 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz |
| Weight | Approx. 690 kg depending on selected options |
| * The machine and repeat accuracy check will be conducted using production-typical process variables. The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements. |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

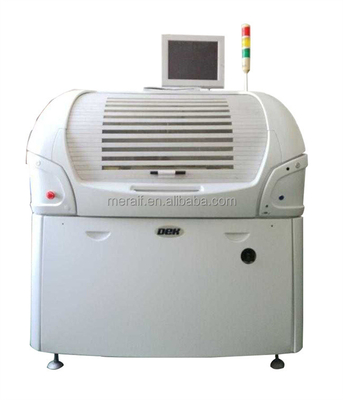

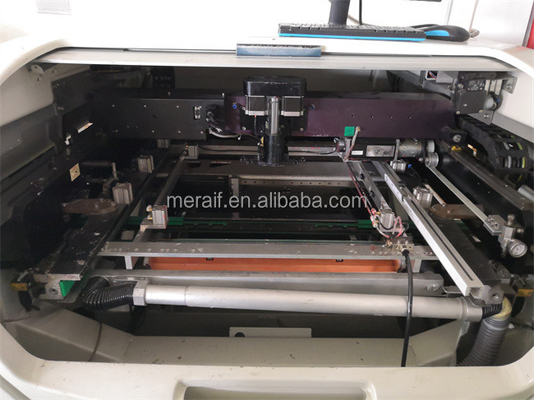

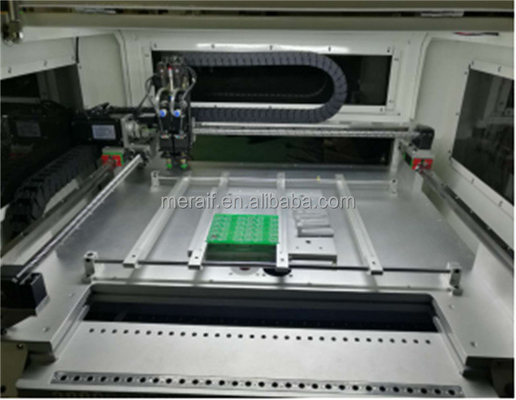

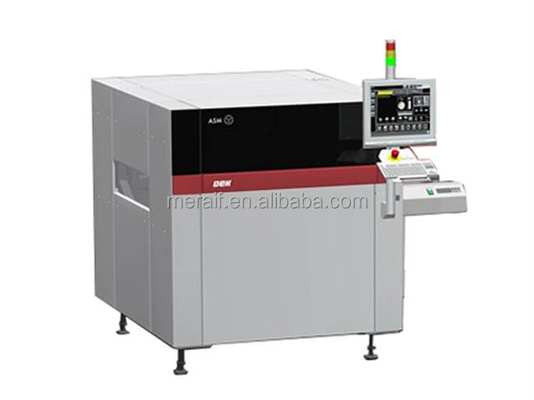

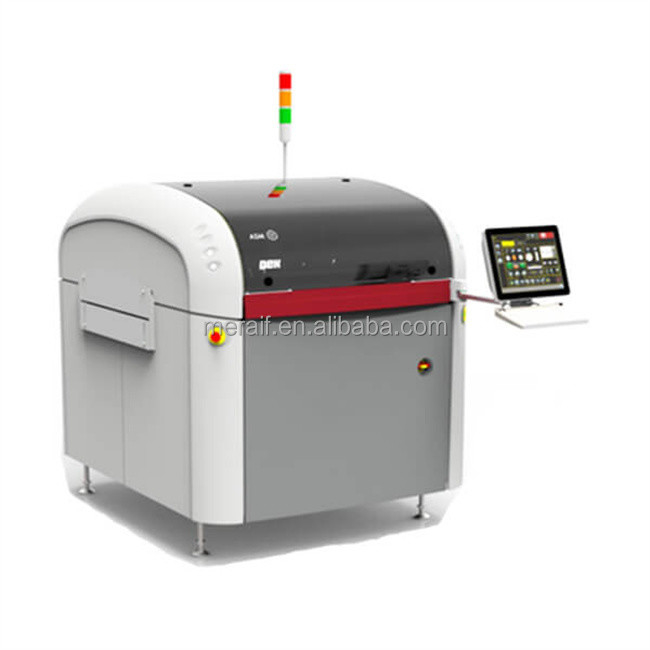

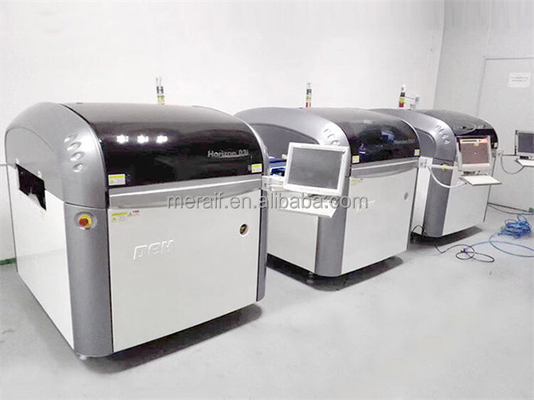

Automatic Dek horizon 8 printer picture show
