ASM printer DEK TQ:
Maximum performance for the integrated smart factory
The DEK TQ marks the next generation of stencil printers. Newly designed from the ground up, this new generation of DEK printers is faster, more precise, more powerful with extremely low maintenance and high production uptime, and easy to integrate into your assembly line. New linear drives, off-belt printing and innovative clamping system ensure a new level of accuracy and deliver a stable printing process – even for the latest 0201 metric components. In the new DEK TQ, precision and speed are inseparable to meet your future requirements. A new 3-stage transport and the unique ASM NuMotion controller with fiberoptic based communication reduce the cycle time to 5 seconds and deliver high-precision performance in the smallest possible footprint.
DEK TQ Innovations
Newly developed Under Stencil Cleaner
Extra-large fabric roll, easily replaceable cleaning body, new dispenser system for the cleaning media, independent linear driven axis and non-stop cleaning fluids supply
Innovative printhead
Integrated paste height controller, fully automated paste dispenser and new improved squeegee pressure controller
New 3-stage transport system
Flexible 3-stage board conveyor system with linear drives, ASM NuMotion controller, new clamping system and off-belt printing
These innovations give you competitive advantages:
Maximum throughput
Core cycle time: 5 seconds
Maximum precision and printing quality
Best solder paste printing for the latest generation of extra-small components like 0201 metric
System alignment capability up to ± 12.5 µm @ 2 Cmk
Wet print accuracy up to ±17.5 µm @ 2 Cpk (measured and certified by the external AVS system before delivery of each DEK TQ)
Fast and flexible 3-stage transport
Fully flexible 3-stage transport system with innovative clamping and off-belt printing for fast, precise and stable print process
Up to 8 hours without assist
New USC with extra-large fabric roll and cleaning fluid supply, new printhead with new paste management system
Open, easy to integrate
IPC-Hermes-9852, closed-loop to SPI, ASM OIB, IPC CFX
Efficient programming
Fully new intuitive software and offline ASM Printer Programming
Best floorspace performance
Only 1.3 square meter footprint
Back-to-back setup
The perfect solution for dual-lane lines
| Machine type | DEK TQ |
| Standard configuration | Specifications |
| Machine alignment capability | > 2,0 Cmk @ ±12,5 μm, (±6 sigma) |
| Wet print capability | > 2,0 Cpk @ ±17,5 μm, (±6 sigma) |
| Core cycle time | 5 secs |
| Maximum print area | 400 mm (X) × 400 mm (Y) (single-stage mode) |
| Machine control | NuMotion control System |
| Camera positioning | Linear motors and high-precision encoders |
| Squeegee pressure mechanism | Software-controlled, motorised with closed-loop feedback |
| Stencil positioning | Automatic loading incorporating squeegee drip tray |
| Substrate size (min.) | 50 mm (X) × 40,5 mm (Y) |
| Substrate size (max.) | 250 mm (X) × 400 mm (Y) (3-stage mode) |
| | 400 mm (X) × 400 mm (Y) (single-stage mode) |
| | 400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions) |
| Approximate dimensions | 1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H) |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

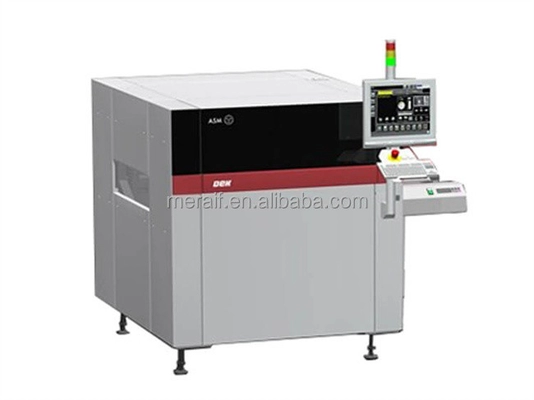

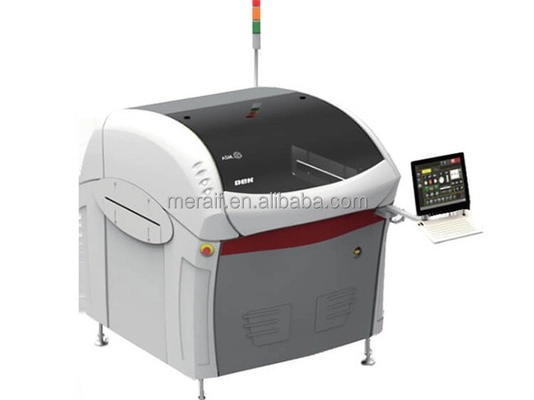

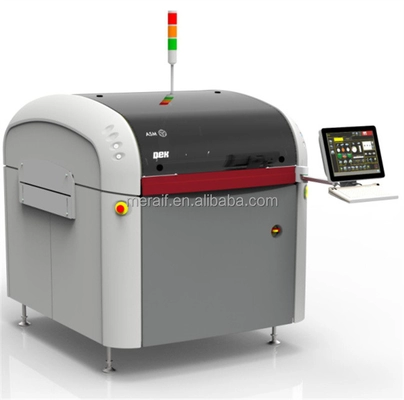

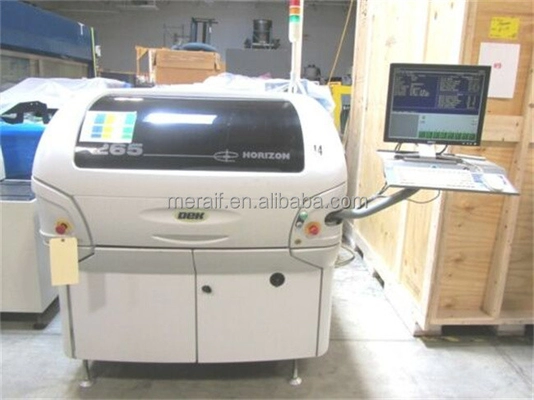

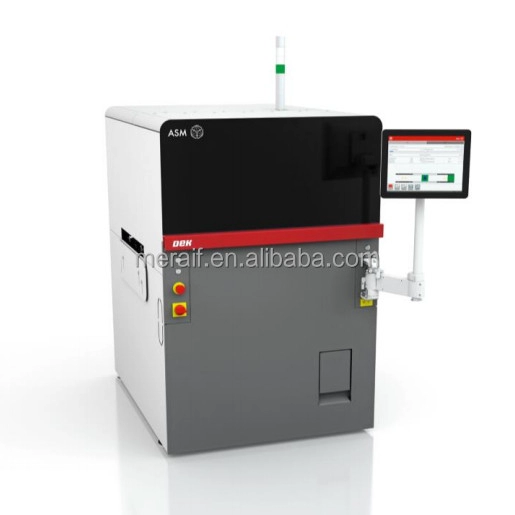

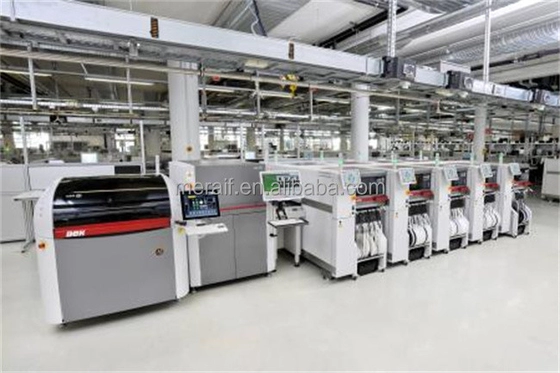

ASM printer DEK TQ picture show
