|Place of Origin:||Japan|
|Brand Name:||reflow soldering machine|
|Model Number:||Heller 1707 mk5|
|Price:||$20,000.00 - $50,000.00/pieces|
|Packaging Details:||reflow soldering machine packing with vacuum wooden case|
|Supply Ability:||1000000 Piece/Pieces per Month reflow soldering machine|
|Showroom Location:||None||Video Outgoing-inspection:||Provided|
|Machinery Test Report:||Provided||Marketing Type:||Ordinary Product|
|Warranty Of Core Components:||1 Year||Core Components:||PLC|
|Warranty:||1 Year||Product Name:||Reflow Soldering Machine|
|Maximum PCB Width:||18" (56 Cm) / 22" (56cm)||Conveyor Length On/off-Load:||18" (46 Cm)|
|Heated Tunnel Length:||70" (179 Cm)||Process Clearance Above Mesh Belt:||2.3" (5.8 Cm)|
|Mesh Belt Pitch:||0.5" (1.27 Cm)||Maximum Conveyor Speed:||74"/Min (188 Cm/min.)|
|Accuracy Of Temperature Controller:||+ .1°C||Port:||Shenzhen|

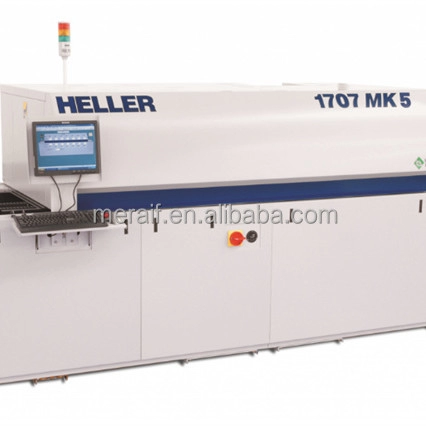

SMT Heller Reflow Oven SMT reflow oven Heller 1707 mk5 reflow soldering machine
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
The 1700 models support high mix / medium volume throughput... at speeds up to 24 inches (60 centimeters) per minute, while conserving valuable factory floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.
Highest Yields and Tight Process Control
The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1ºC, thereby maintaining profile integrity for heavy board loads.
Wide process window for "universal profiling" - allows many different boards to be run on a single temperature profile
Advanced 5 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 profile graphs

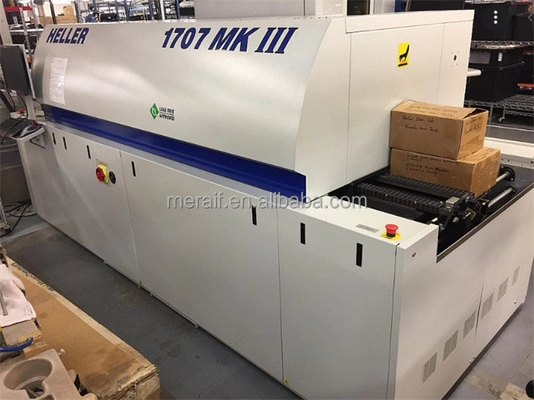

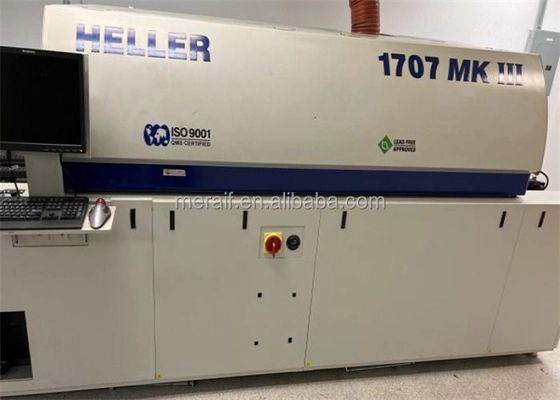

Heller 1707 MKIII
