inspection SAKI 3D AOI machine Specification:
BF-3Di, the new 3D AOI made in SAKI, has played a protagonist role in Madrid, at the latest MATELEC exhibition.
New positioning system:
New servo and dual-driven ball-screw and linear scale positioning system
The ball-screw and linear scale system is 50% faster, thereby resulting in a 20% reduction in cycle time, providing greater cycle time and efficiency
New machine configurations: BF-3Di-L1/Z1/D1:
BF-3Di-L1: The new L-sized machine, handling 510mm x 460mm (20 in. x 18 in.)
BF-3Di-Z1: The new XL-sized machine, previously unavailable in a 3D system, handling boards 686mm x 870mm (27 in. x 34 in.)
BF-3Di-D1: The new Dual-Lane machine, with independent operation
New optical head:
New optical head has optimized stripe pattern projectors, improving contrast, and stripe pattern for improved accuracy and image quality
New optical head is 30% lighter than optical head of previous BF-3Di system
New 4-stage seamless lighting ring for improved illumination and imaging
New side cameras:
New optional quad-directional side cameras offer improved inspection of J-leaded, QFN, and connector components
Provides accurate inspection of fillet geometry
Side camera FOV width matches main camera FOV
Side camera resolution is the 18µm, same as the main camera resolution
New Auto Programming:
New auto programming software offer improved programming time
Inspection libraries are automatically applied based on component information, such as name, shape, and gerber data
Reduces library creation time by over 50% compared to conventional AOI
New Extra Component Detection (ECD) for 3D
Detects foreign materials , such as dropped components on the board surface
Improves inspection quality for the entire board area
New 3D alghoritm for THD componentes:SAKI developed dedicated 3D algorithms and features for THT area, which can be used to makeTHT inspection simple and effective
Inspection category: No solder, Less solder, Cold solder, Pin bent under PCB, Hole in solder, Bridge on PCB, Bridge above the PCB, Solder calls
New Warpage Compensation calculation:Provides accurate measurement and compensation across the entire board, including flexible circuits and Package-on-package devices
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

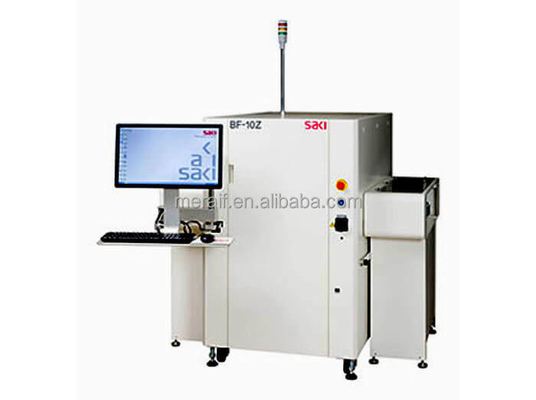

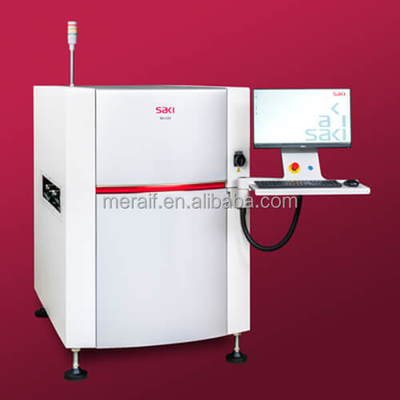

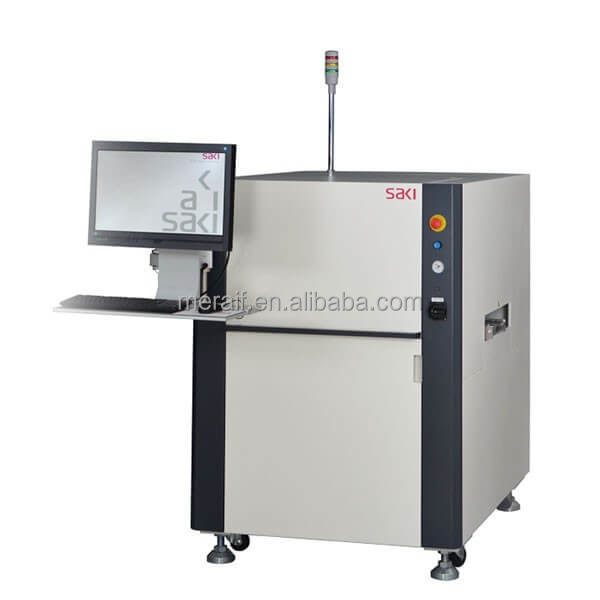

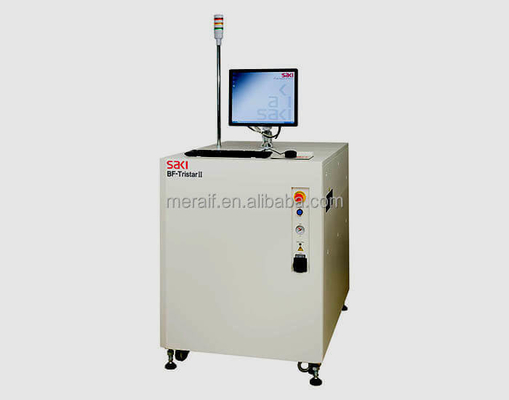

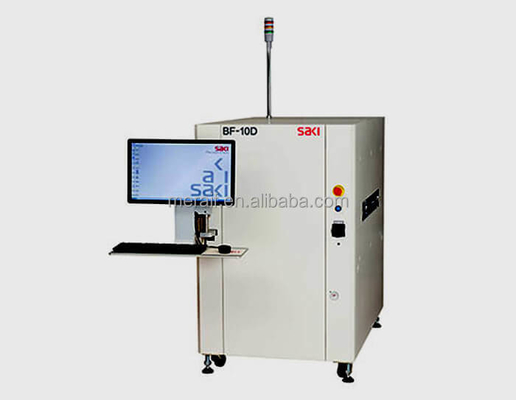

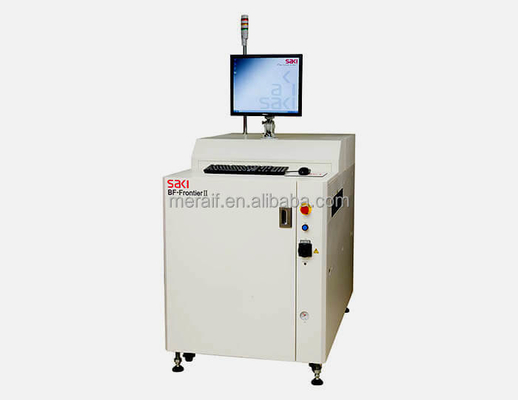

inspection SAKI 3D AOI machine picture show
