Mirtec MV-3L Desktop AOI Specification:
Product Overview:
The MV-3 Series offers Advanced Five Mega Pixel Digital Color Camera Technology in a desktop AOI system. This advanced technology provides the ultimate in inspection performance and speed. The optional Side Viewer camera system provides enhanced inspection capability through the addition of four Five Mega Pixel Side View Digital Color Cameras. MIRTEC's MV-3 Series is the world's first generation of five camera Desktop AOI systems.
Product Features:
Five Camera In-Line Aoi System

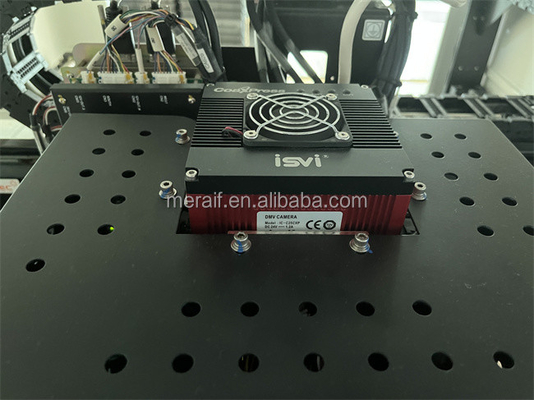

Exclusive Ten Mega Pixel ISIS Vision System
9.8 Micron/Pixel Tele-centric Compound Lens Design

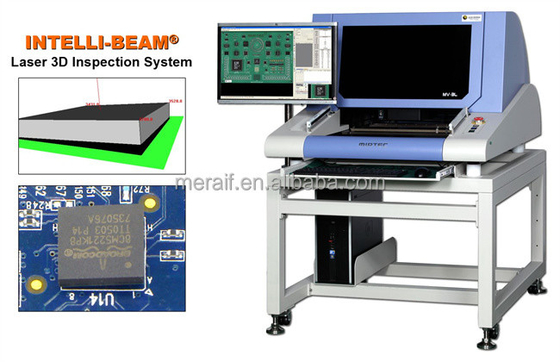

Integrated Intel-Beam 3D Laser Inspection System
Four Point Height Measurement for BGA and CSP Devices
Integrated Ten Mega Pixel Side Viewer System
Precision Linear Drive Motor Design
Extremely Simple Programming and Operation
Power Requirements:
Power: 1-Phase, 50/60 Hz
Specifications:
Aisle: OFF
Bay: SITE
Weight (lb): 352 lbs.
Machine Dimensions: 595 H x 975 W x 1200 D mm
Lighting System: 3 Layer LED

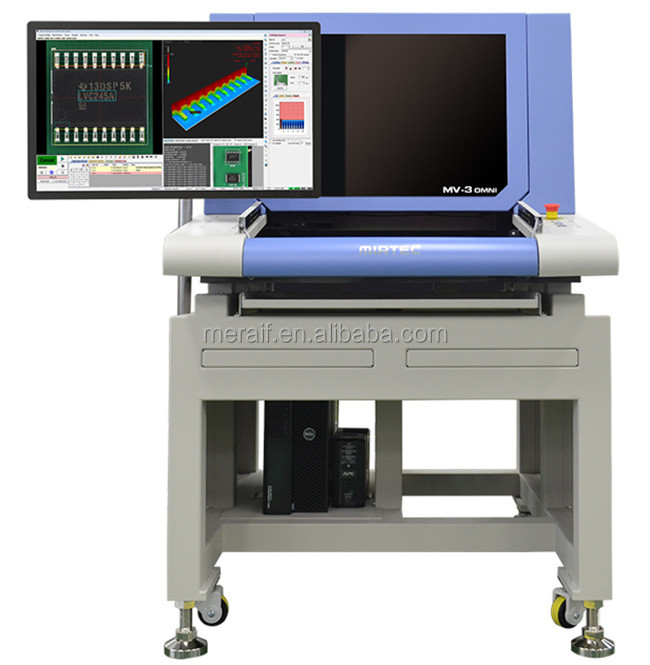

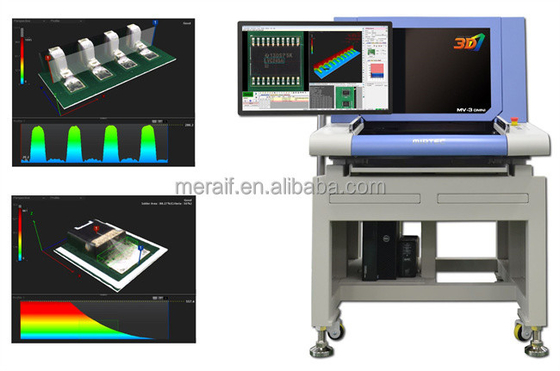

Mirtec MV-3L Desktop AOI picture show
