Original used Koh Young KY8030-2 3D Solder Paste Inspection System
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Koh Young KY8030-2 3D Specification:
The World's Best-selling Full 3D Solder Paste Inspection
Best-in-class measurement accuracy and inspection reliability
Solves shadow problems by utilizing 2-way projection
Provides accurate inspection data with real-time PCB warp compensation
Provides user-friendly software interface
Full 3D data-based process optimization solution: Realization of industry 4.0 / smart factory
Realizes real-time process optimization through powerful SPC analytics
Provides a powerful printing process optimization tool
Good value model for a variety of production environment
Key Features:
Solution to shadow problem using patented dual projection Moiré technology
Industry best inspection speed with guaranteed measurement accuracy
Easy UI & SPC Plus included to help printing process optimization
Inspection Items: Volume, Area, Height, Offset, Bridging, Shape Deformity, Coplanarity
Inspection Speed:
| Resolution | 15um | 20um | 25um |
| Inspection time(per FOV) | 0.47sec | 0.47sec | 0.47sec |
| Max. PCB size: |
| Machine Size | M | L | XL |
| Max | 330 x 250 mm | 510 x 510 mm | 810 x 610 mm |
| FOV Size | 30 x 30mm |
| 3D Inspection Speed | 22.5-56.1cm2/Sec |
| Distance between deposit | 100 Micrometer |
| Inspection Size | 10 x 10mm |
| Inspection Height | 400 Micrometer |
| PCB Size Handling | 330 X330mm To 850 x 690mm |
| Air And Power Supplies | Single Phase 200-240vac,50-60hz,5kgf/ Cm2 |

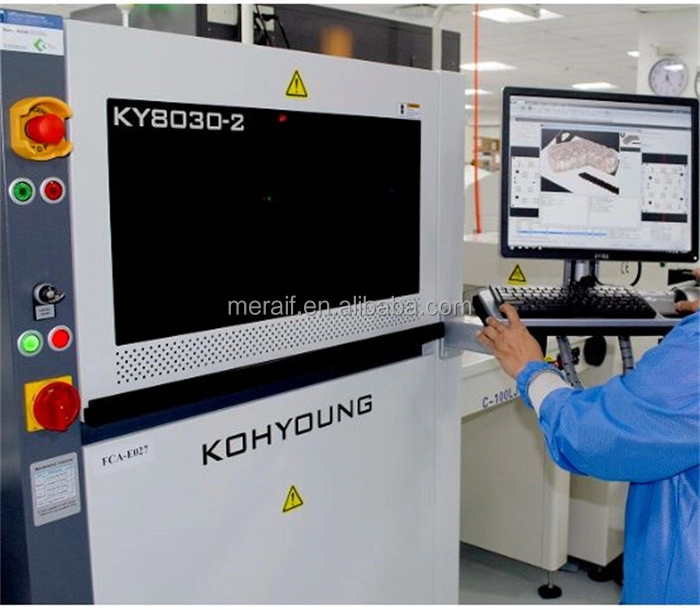

Koh Young KY8030-2 3D picture show
