|Place of Origin:||USA|
|Brand Name:||KIC X5 profiler|
|Model Number:||KIC X5 profiler|
|Minimum Order Quantity:||1 set|
|Price:||KIC X5 profiler 6700-10000usd|
|Packaging Details:||KIC X5 profiler packing with wooden case|
|Delivery Time:||KIC X5 profiler within 15 days after payment|
|Payment Terms:||TT,western union,paypal and so on|
|Supply Ability:||300 sets per month KIC X5 profiler|
|Usage:||Industrial, reflow oven temeperature profile test|
|Theory:||Temperature Recorder and Analytical instruments|
|Brand Name::||KIC X5 Profiler||Usage::||Industrial, Reflow Oven Temeperature Profile Test|
|Theory::||Temperature Recorder||Accuracy::||±0.5℃(Full Scale), ±0.5℃(Full Scale)|
|Temperature Range::||-150℃~1050℃||Resolution::||Variable 0.3C To 0.1C|
|Internal Operating Temp::||0C To 105C||Sample Rate::||0.1 To 10 Per Second|
|Brand::||SMT Thermal Profiler||Skype:||Sensenhenhao|

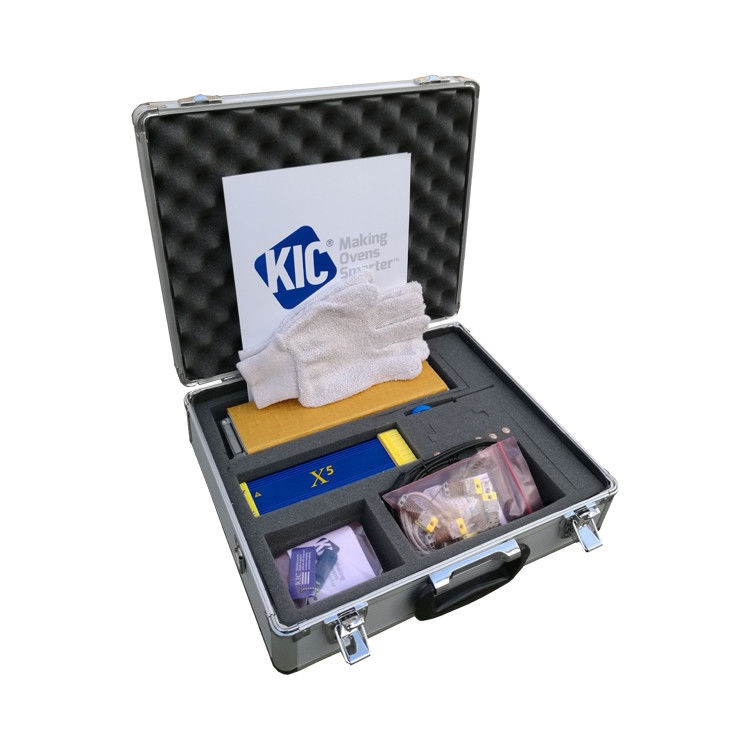

KIC X5 7 channel thermal profiler Industrial Usage and Can up to 350-400 deg.C Temperature range KIC X5 Profiler online
Intelligent Thermal Profiler
Robust Hardware – Ease of Use – Process Optimization
2 Year Warranty – 24 Hour Word Class Customer Support
Robust and Compact Hardware
This new and improved hardware is designed to withstand the roughest and toughest daily handling! The electronic circuitry is designed to tolerate a high level of voltage spikes that occasionally occur in some ovens and wave solder machines.
KIC is putting their money where their mouth is by offering a standard TWO YEAR warranty on this durable profiler.
The X5 is availalbe in 7, 9, and 12 channel versions using standard type K thermocouple connectors and uses standard AAA or recharageable batteries. Additionally you can power the X5 via the USB cable when connected to a computer. Get better data to precisely identify what is going on with each thermal profile and process in the factory.
Data Intelligence Software
The X5 software uses a modern, graphical interface that quickly and intuitively guides you through the task of profiling. Manual prediction capability comes standard with the X5, allowing you to manually adjust and improve upon your process or oven setup. The Navigator PowerTM software feature automates process improvements and optimization for you and ships standard with the X5. Within seconds, the Navigator Power will identify the single best oven setup.
The X5 also comes standard with SPC charting software that helps reveal changes in the profile over time.
The X5 hardware and software establish a new generation of profiler to improve your production quality, productivity, and documentation.
2.Resolution: Variable 0.3C to 0.1C
3.Internal Operating Temp: 0C to 85C
4.Thermocouple Compatibility: Type K, 6 channels
5.Temperature Range: -150C to 1050C
6.Power Requirements: Standard 9V alkaline battery
7. Data Points: 224,640
8.Dimensions: See Temperature Tolerance Chart below for specifications
9. Sample Rate: 0.1 to 10 per second
Datalogger Model: data is downloaded to the computer through a cable after the run.
Dual Unit Model:data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.
Minimum System Requirements
1.When KIC 2000 Software is running on the same computer as the Oven software, and/or when additional KIC 2000 Software options are installed, a faster CPU and more RAM may be required.
2.A USB to Serial Adapter may be required to connect the SlimKIC 2000 for profiling.
3.Contact KIC for issues with operating systems other than those listed.
400 MHz Processor, Celeron / 128 Mb RAM1
1 Gb available storage (for product history)
Video 1024 x 768 resolution / 16-bit
1 available serial port or USB port2
1 available parallel port or USB port for software key options
Microsoft® Windows® 2000 or XP3
KIC X5 profiler
Wickon hightesh offers temperature profiling systems in six major areas:
Oven Tracker Systems for the finishing, paint and powder coating industries
Furnace Tracker Systems for heat treatment processes and furnace surveys
Kiln Tracker Systems for tunnel & roller hearth kilns used in the process of firing ceramic products
Reflow Tracker Systems for PCB and electronics board manufacturing
Solar Tracker Systems for solar photovoltaic (PV) manufacturing
Food Tracke Systems for food processing
