Place of Origin: | China |
Brand Name: | bga reball machine |
Certification: | CE |
Model Number: | 650 mobile Pcb repair machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 4000-5000 USD FOB SHENZHEN |
Packaging Details: | mobile Pcb repair machine packing with wooden case |
Delivery Time: | mobile Pcb repair machine delivery within 7 days after payment |
Payment Terms: | BY TT |
Supply Ability: | 250 sets per month mobile Pcb repair machine |
Total Power: | 5100W |
Upper Heating Power: | 1200w |
Lower Heating Power: | Second temperature zone 1200W,Third temperature zone2700W |
Power Supply: | (Single Phase)AC 220V±10 50Hz±3 5.2KVA |
Machine Dimension: | L880×W880×H720mm |
Locating way: | V-shaped groove ,PCB holder can adjust any direction of X,Y |
Temperature Controlling: | (high precision K-sensor)(Closed Loop),up and down can test the temperature independently |
PCB Size(Max): | 370×380mm |
PCB Size (Min): | 10*10mm |
Chip zoom multiple: | 2-50 multiple |
Thermocouple Ports: | 3 units |
Packing weihgt: | 85kg |
Warranty: | one year |
Produxt: | bga rework station |
Whatsapp: | +8613424013606 | Skype: | Sensenhenhao |
---|---|---|---|
Email: | Joy@wickon.net | Products: | Mobile Pcb Repair Machine |
Paking: | Wooden Case | Delivery: | 3-7 Days After Payment |
Payment:: | TT,western Union |
Factory price bga rework station Repair laptop mobile, mobile Pcb repair machine
mobile Pcb repair machine Specification:
1 |
total power |
5100W |
2 |
Upper heating power |
1200W |
3 |
Lower heating power |
Second temperature zone 1200W,Third temperature zone2700W |
4 |
Power supply |
(Single Phase)AC 220V±10 50Hz±3 5.2KVA |
5 |
Overall dimension |
L880×W880×H720mm |
6 |
Locating way |
V-shaped groove ,PCB holder can adjust any direction of X,Y |
7 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),up and down can test the temperature independently |
8 |
Large PCB size |
370×380mm |
9 |
Small PCB size |
10×10mm |
10 |
Chip zoom multiple |
2-50 multiple |
11 |
Weight of machine |
85kg |
Our advantage for mobile Pcb repair machine:
1.10 years experience of the BGA Rework Station
2. touch screen and LCDmonitor
3.Advanced technology at demostic and abroad
4.High reputation around the world
5.Good and professional after-sales service
6. Good balance of the price and quality

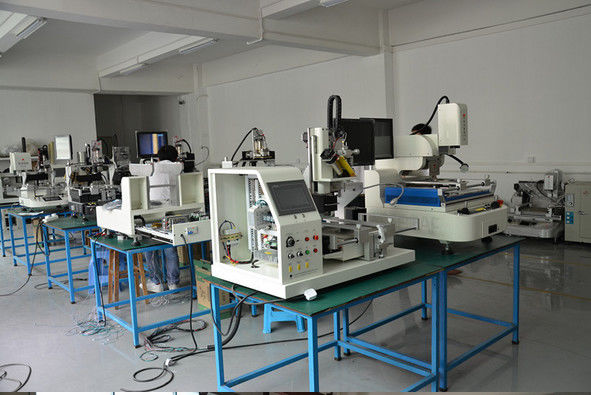

mobile Pcb repair machine Picture Show
APPLICATION:
Infrared BGA rework station for laptop/ desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
1.The upper heating head and placement head are design 2 in 1, which have automatic welding and automatic placement function.repair large PCB board
2. using the touch screen,HMI,PLC control, which can show you the three temperature curves anytime and the temperature control can accurate to +1Celsius degree.8 Paragraph temperature control, which can be set to warm up, insulation, heating, soldering1, soldering 2,cooling.The excellent temperature control system can ensure the best soldering effect.
3.Total have 3 temperature zones to heating independent, the first and second temperature zones can control many groups and paragraphs temperatures at the same time, the third temperature zone can preheating a large areas of the PCB board, and make the best soldering effect.repair large PCB board
4. The second zone designs specially to support the PCB board, which can go up and down, prevent the PCB board collapse from the damage during soldering.
5. Select the high precision K-type thermocouple closed-loop control,the temperature measurement interface in outside can achieve precise temperature detection.
6. Store more than 100 temperature cure setting, change the setting and analysis the curve at any time. repair large PCB board
7. Using the V-shaped groove to position the PCB board, removable universal jigs can protect the PCB board.
8. Using the high power cross-flow fan to cooling the PCB board in a short time, protect the PCB board and ensure the
soldering effect.
9. With the alarm function, after the BGA welding the machine can alarm by itself. In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.
10.Touch screen control of the upper heating system and optical digital device, easy to operate and ensure alignment precision control within 0.01-0.02mm.
11.Using the high precision optical alignment video system with spectral amplification, fine-tuning function, with 15” color LCD monitor. High automatic, can avoid the human operating errors and have excellent special effect on lead-free technology as well as the pop package devices.
