|Place of Origin:||China|
|Model Number:||solder paste mixer NStar-600|
|Minimum Order Quantity:||Solder Paste Mixer|
|Price:||600-1000 usd Solder Paste Mixer|
|Packaging Details:||Solder Paste Mixer packing with wooden case|
|Delivery Time:||Solder Paste Mixer within 5 days after payment|
|Payment Terms:||TT,western union,paypal and so on|
|Supply Ability:||300 sets per month Solder Paste Mixer|
|Item:||Solder Paste Mixer||Application:||SMT Production Line|
|Max. Loading Capacity:||500g||Voltage:||110V/220V|
|Revolving Speed:||1400RPM, 400RPM||Packing:||Wooden Case|
SMT solder paste mixer machine NStar-600
Get more details please contact email@example.com,skype:sensenhenhao,whatsapp:+8613424013606
smt solder paste mixer Specifications
smt solder paste mixer Advantage:
Unique contoured shape, generous appearance and practical, which is made by advanced coating process workmanship.
Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.
Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient.
Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption.
Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste.
Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance.
Applies to Omron time relay controller, reliable and easy to operate.
Feature of smt solder paste mixer
1.put the machine on a solid work surface and the connect power. Turn on swith after stabling the machine
2.Open the cover, and put two same weight bottle of solder past or ink into the barrel fixture.
3. Work time setting : the time can be set from 0.1-9.9 min through press the red button on the panel. Generally, it set at 3 minutes or so . If the solder paste is froze to low and stored for too long, the stir time should be increase to appropriate.
4. Press the start switch, the machine starts running when the set time is reached, the machine will automatically stop and whistle. If there is abnormal noise during operation, you should immediately press stop switch to check. (Note: do not open the cover before the machine stopping moving to avoid danger

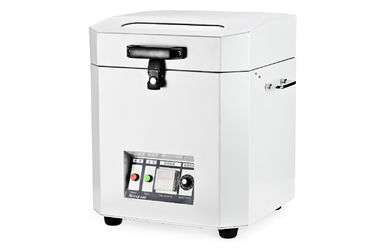

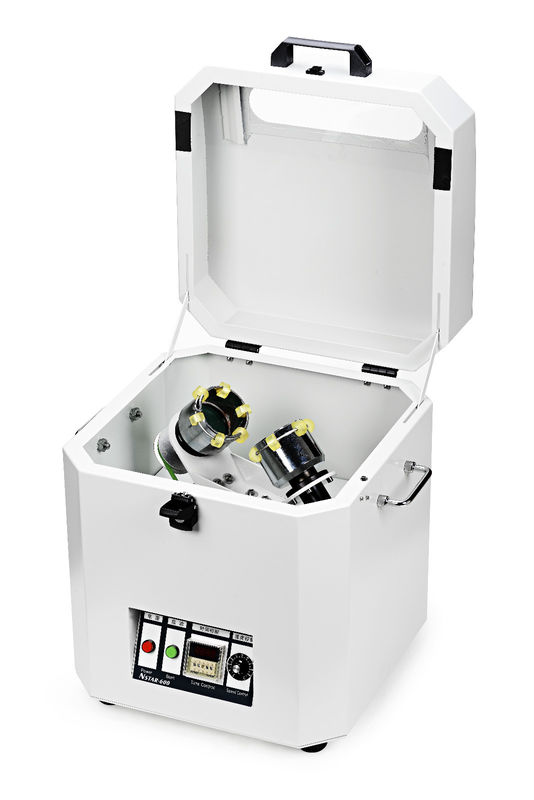

smt solder paste mixer Picture Show
