Wickon 1400 speed smt solder paste mixing mixer machine

Wickon 1400 speed smt solder paste mixing mixer machine

Wickon 1400 speed smt solder paste mixing mixer machine

Product Details:

Place of Origin: China
Brand Name: wikcon
Certification: CE
Model Number: wickon solder paste mixer

Payment & Shipping Terms:

Price: 800 usd
Packaging Details: packing with wooden case
Delivery Time: within 5 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 300 sets per month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
High Light:

smt solder paste mixing mixer machine


solder paste mixer machine


solder paster mixer

Wickon 1400 speed smt solder paste mixing mixer machine

smt solder paste mixing mixerSpecifications

Working voltage: 220 v AC( 50 hz) 60 w

A rotational speed: 1400 RPM; Secondary rotation: 400 RPM

Ability to work: 500 g * 2 cans

Can accept solder paste pot M tank diameter Φ 60-67 standard Φ

S tank diameter: Φ 53 - Φ 60 (option, please contact the supplier)

L tank diameter :Φ 67 - Φ 74

Every time adjust time setting :0.1 ~ 9.9 minutes, 0.1 minutes;

10 ~ 30 minutes, adjust 1.0 minutes at a time.

Display and warning LED digital display, warning lights flashing and a buzzer

The machine size 410 * 410 * 490 mm (D * W * H)

Model NSTAR - 600

The net weight: 45 kg

smt solder paste mixing mixer Advantage:

Unique contoured shape, generous appearance and practical, which is made by advanced coating process workmanship.

Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.

Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient.

Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption.

Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste.

Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance.

Applies to Omron time relay controller, reliable and easy to operate.

Feature of smt solder paste mixing mixer

1.put the machine on a solid work surface and the connect power. Turn on swith after stabling the machine

2.Open the cover, and put two same weight bottle of solder past or ink into the barrel fixture.

3. Work time setting : the time can be set from 0.1-9.9 min through press the red button on the panel. Generally, it set at 3 minutes or so . If the solder paste is froze to low and stored for too long, the stir time should be increase to appropriate.

4. Press the start switch, the machine starts running when the set time is reached, the machine will automatically stop and whistle. If there is abnormal noise during operation, you should immediately press stop switch to check. (Note: do not open the cover before the machine stopping moving to avoid danger

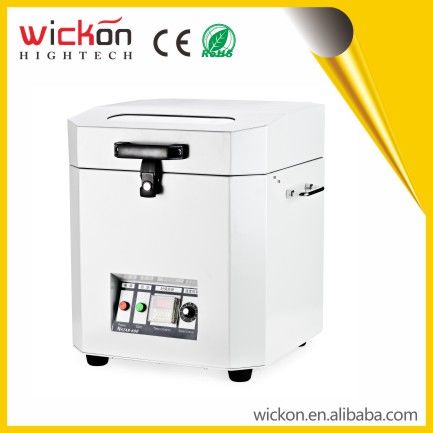

smt solder paste mixing mixer Picture Show

Wickon 1400 speed smt solder paste mixing mixer machineWickon 1400 speed smt solder paste mixing mixer machine
