Place of Origin: | Guangdong, China |
Brand Name: | Coupling Insert |
Model Number: | PMCD4004 |
Minimum Order Quantity: | 100 pieces |
---|---|
Price: | $13.00/pieces 100-499 pieces |
Packaging Details: | Polytube Fitting packing with wooden case |
Supply Ability: | 1000 Piece/Pieces per Month |
Warranty: | No | Product: | Polytube Fitting |
---|---|---|---|
Whatsapp: | +8613424013606 | Skype: | Sensenhenhao |
Wechat: | JoyLY0322 | Material:: | Acetal |
Pressure Range:: | Vacuum To 120 Psi, 8.3 Bar | Mounting Option:: | Panel Mount |
Valve Spring:: | 316 Stainless Steel | Seal Options:: | Buna-N |
Color:: | White | Port: | Shenzhen |
PMCD4004 Panel Mount Ferruleless Polytube Fitting, PTF - PMC Series
whatsapp:+8613424013606,skype:sensenhenhao
PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
Polytube Fitting Specifications:
Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Panel Mount
Tubing Size: .17" ID, 1/4" OD
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units
Polytube Fitting SPECIFICATIONS
Product Weight & Dimensions
Product Weight:0.01g
Product Details:Water
Body Material:Acetal Copolymer
Inlet/Outlet Connection:1/4" FPT
Max Pressure (Psi):120
Max Temp (°F):180
Min Pressure (Psi):Vacuum
Min Temp (°F):-40
Mounting Options:Panel Mount
Nsf Version:No
Push-In Size:1/4" OD
Seal Material:Buna-N
Series:PMC
Size:1/4"
Spring:316 stainless steel
Valve Type:Valved
Color / Finish:white
Connection Type:male (FPT)
Type:Coupling Insert

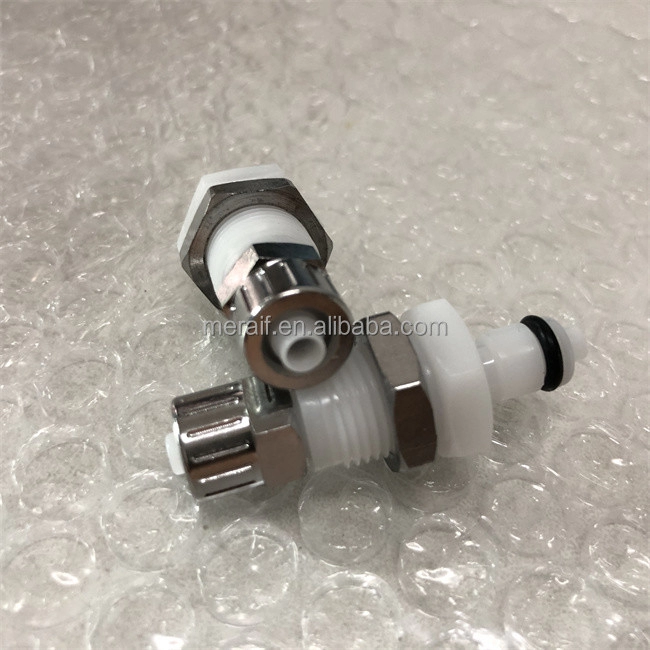

Polytube Fitting picture show:
