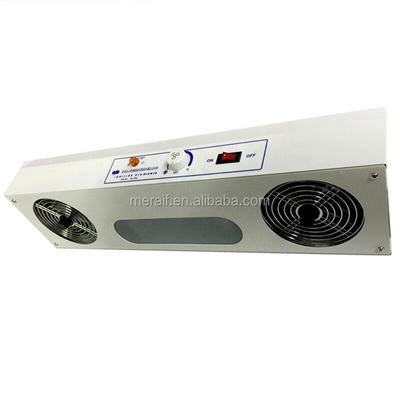

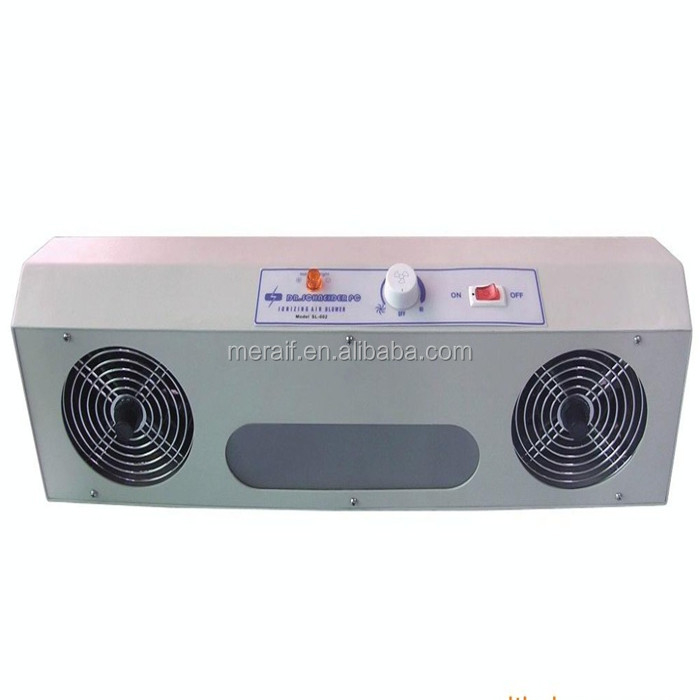

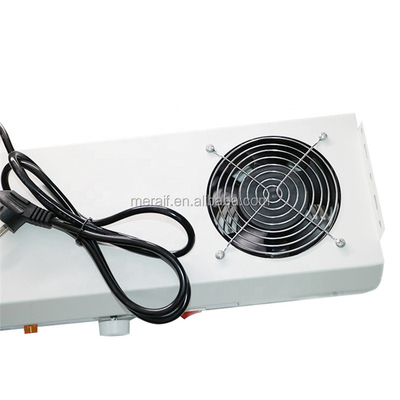

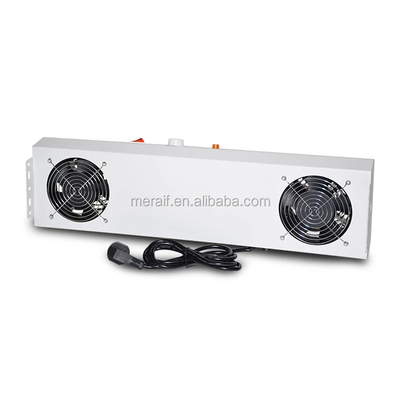

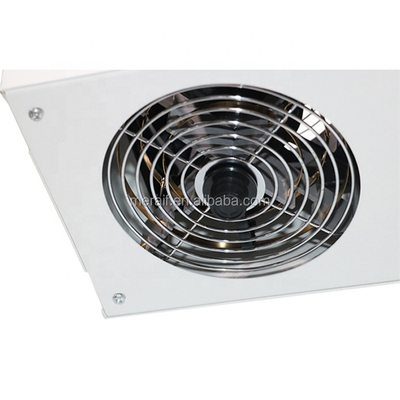

SL-002 ESD Ionizing air blower
Testing Voltage: 1kV to 100V
Operating Voltage: 110V/60Hz or 220V/50Hz
Temperature: 22°c,
Testing humidity: 75%RH
ESD Ionizing air blower Characters:
Ionizing air blower is a static elimination device which delivers a balanced ion stream to neutralize in a wide and focus area.
ESD Ionizing air blower Detailed technical parameters:
| Operating Voltage | 110V/60Hz or 220V/50Hz |
| Current Consumption | 0.9A or 0.4A |
| Operating Temperature | -10 ~50°c |
| Air Coverage | 40cm x 90cm |
| Ion balance | 0V±10V |

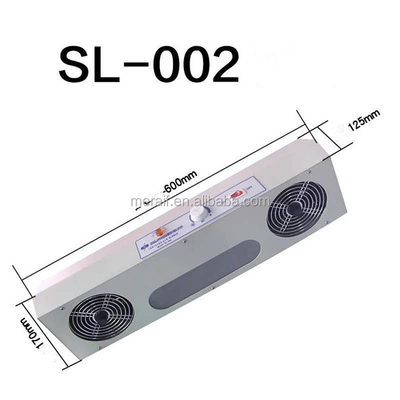

| Size | 600mm(L) x90mm(W)x170mm(H) |
| Air Volume | 80~220CFM |
| Distance | 300mm | 600mm | 900mm | 1200mm |
| Left 300mm | 1.3s | 2.4s | 2.8s | 4.9s |
| Center | 2.8s | 1.7s | 3.2s | 3.6s |
| Right 300mm | 1.2s | 2.1s | 3.0s | 4.5s |
ESD Ionizing air blower Functions:
They are ideally used in industrial environments, such as delicate electronic products, electronic assembly line, medical device manufacturing and assembly lines, printing, packaging, and small part injection molding.
