Vacuum Suck Pen FFQ 939 Hand Tool for IC + 3 suction headers vacuum pen
Vacuum Suck Pen Specifications:
-100% new with high quality.
-Low-cost alternative to tweezers for the pickup and placement of delicate SMD components.
-Soft ESD-sate conductive silicone suction cups won scratch or damage sensitive parts.
-Included 3 size of suction headers , ( small size for 3g , medium size for 18g and large size for 40g )
How to Use :
-Install a proper IC suction header on suction pencil
-Place the suction header level on IC

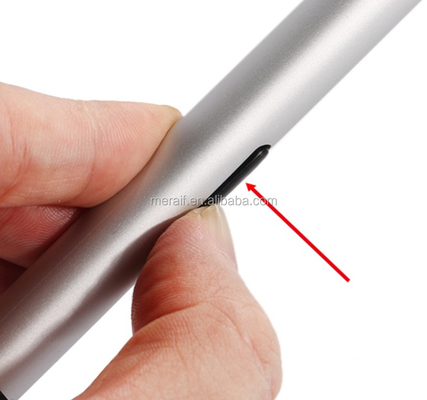

-Press down the button on the suction pencil to let out the air within the vacuum unit, then release the button to produce vacuum suction force to pick up IC
-Put the IC on a proper place, press down the button, the vacuum unit discharges air to let the IC fall off the suction header
Vacuum Suck Pen Specification:
-Material : Plastic + Steel + Silicon
-Suction Headers Diameter : 3mm(Small) ,7mm(Medium) ,10mm(Large)
-Adsorption Capacity : 3g(Small) , 18g(Medium) , 40g(Large)
Package Included:
1 x Vacuum Sucking Pen
3 x Suction Headers

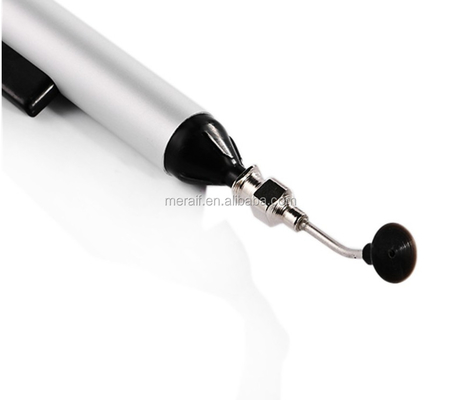

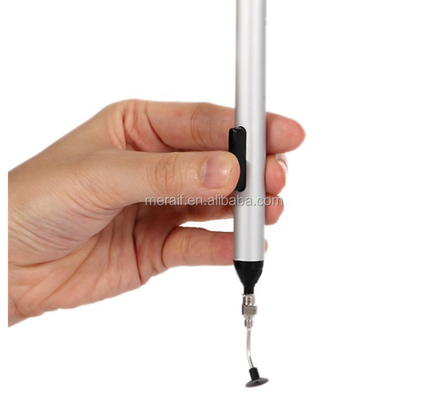

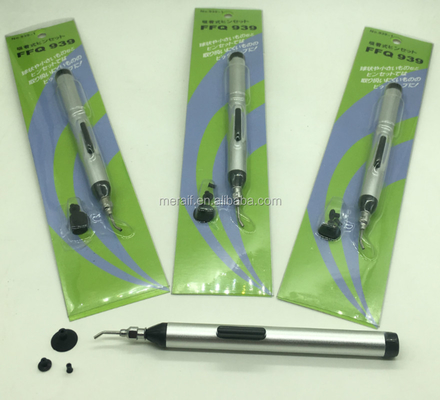

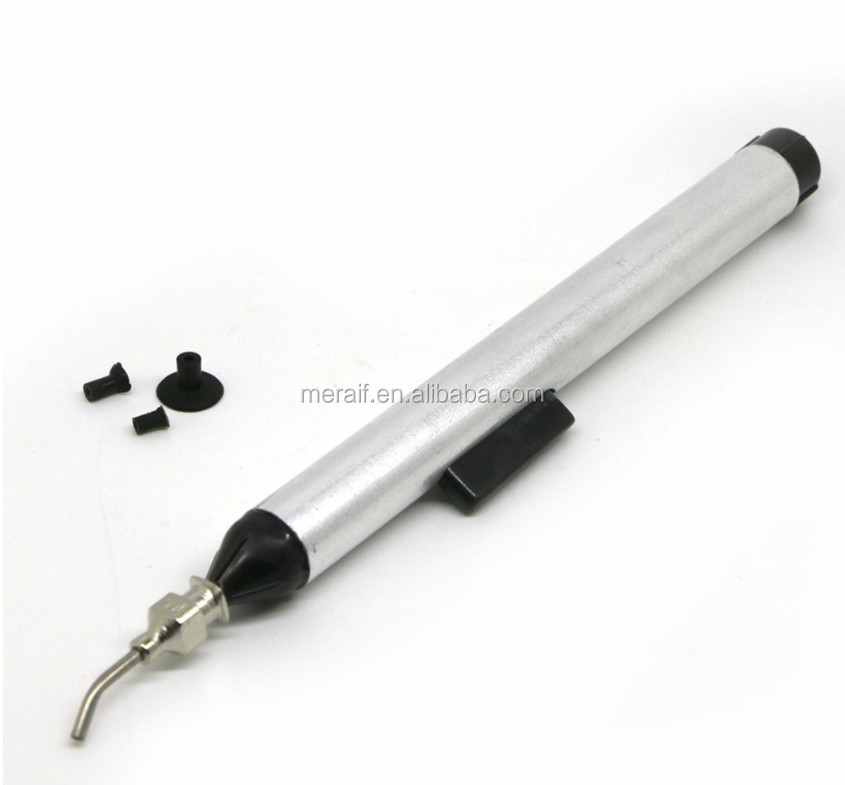

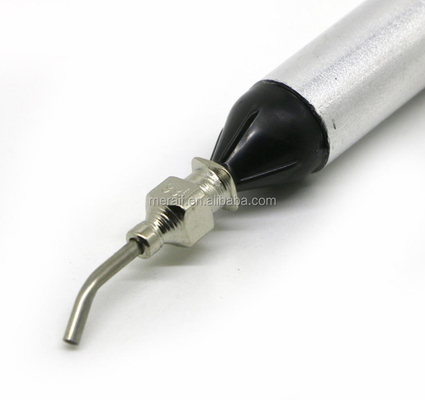

Vacuum Suck Pen picture show:
