|Place of Origin:||Guangdong, China|
|Brand Name:||SMT YAMAHA FEEDER|
|Model Number:||yamaha feeder KJW-M1100-000|
|Minimum Order Quantity:||10 pieces|
|Price:||$140.00/pieces 10-199 pieces|
|Packaging Details:||FT 8*2mm feeder packing with foam +carton|
|Supply Ability:||2000 Piece/Pieces per Month FT 8*2mm feeder|
|Showroom Location:||None||Video Outgoing-inspection:||Provided|
|Machinery Test Report:||Not Available||Marketing Type:||Ordinary Product|
|Warranty Of Core Components:||1 Year||Core Components:||YAMAHA FEEDER FS 8*2MM|
|Warranty:||1 Year||Item:||FT 8*2mm Feeder|
|Applicable Models::||YAMAHA YV Series YG Series||Alternative Feeder::||FV CL FT FS Feeder|

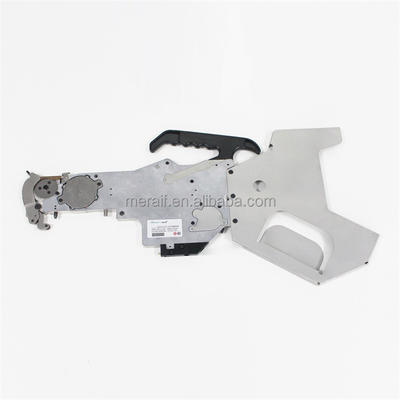

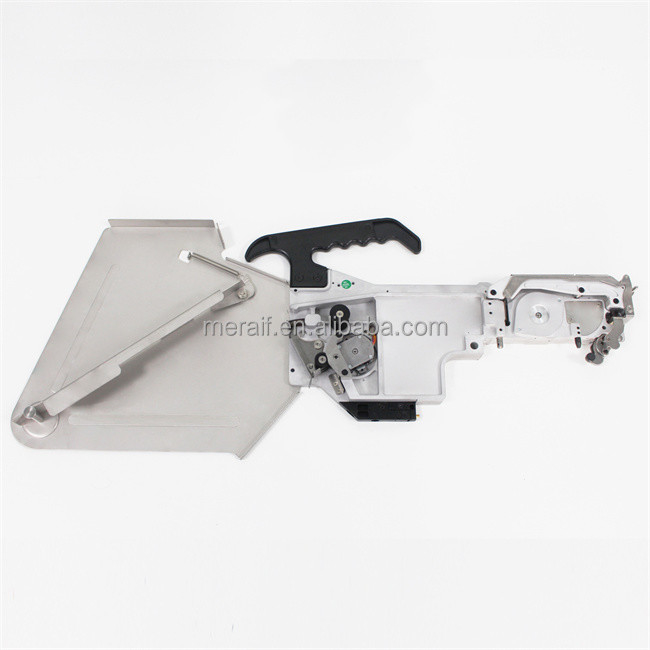

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder
We are smt solution provider more than 16yeras.
All smt machine line and parts, PCBA cleaner machine line we can support you.
OEM electronic feeder for Yamaha YV YG series pick and place machine
FT 8*2mm feeder parameters
Model: YV-08 / 12 / 16/ 24/ 32mm
Applicable models: YAMAHA YV series YG series
Alternative Feeder: FV CL FT FS Feeder
Main body material: aluminum alloy
Positioning method: double pin guide rail positioning connecting rod locking
Electrical interface: single-pin contact interface
Current: 0.5A | 2.5A MAX.
Communication method: Pulse
Drive mode: electric drive
Feeding speed: 68ms/pcs 4mm pitch
Feeding accuracy: X axis ±0.05mm, Y axis ±0.05mm
Feeding speed: 80000CPH
Lamination recycling: inclined-pull coiling mechanism
Applicable package: 8/12/16/24/32/44/56MM standard SMT package
Applicable materials: all materials that can be packaged in standard YMH
Refueling method: overall refueling, tape refueling
Working temperature: temperature -20~65℃
Working humidity: humidity 20~90%RH, no condensation
Storage temperature: temperature -40~85℃
Storage humidity: humidity 10~95%
Aging test: 72 hours of continuous work without abnormality
Operation record: complete and consistent
Service life :>=20K hrs.MIL-HDBK-217F(25℃)
The stepper motor replaces the cylinder drive of the traditional feeder, and the precision copper gear replaces the mechanical link drive.
By taking the electrical contact pin, connecting the 24V safety power supply, the shielding sensor converts the mechanical signal of the placement machine
An electrical signal is generated to control the feeder to work.
Upgrade advantage: Wide range of electronic material models. 8mm is compatible with two packaging methods of paper tape, and 1mm/2mm/4mm steps can be switched with one key. One AREED 8mm electric feeder is used instead of the original three 8mm feeders.
Precision advantage: The drive motor runs with a smaller amplitude than the cylinder, which reduces the material deviation caused by vibration. High-precision feeding gears are matched with high-precision motors to ensure accurate feeding every time. The self-developed FEEDER calibrator can capture the X/Y coordinate value of each feeding, and calculate the CA\CP and CPK values to judge the consistency of the feeding accuracy of each FEEDER.
Speed advantage: feeding speed: Omron grating sensor quickly senses machine signal, self-developed control board software algorithm is more scientific and reasonable, stepper motor is equipped with acceleration gear, FEEDER feeding speed exceeds the pick-up limit of placement machine.
Line change speed: stripping tape directly above, with self-contained film storage room; batch line change without dismantling the feeder, automatic warehouse opening reminder when the material is full, truly realizing the function of non-stop material change, and the line change efficiency can be increased by more than three times.
Compatibility advantage: Applicable to all YAMAHA machinery FEEDER platform machines on the market. It is convenient to install conductive brackets, without changing or destroying the original lines, which is simple, safe and effective. After the change, it does not interfere with the original mechanical feeder position, and can be used alternately at the same time.
