    Product Details:

    Place of Origin: Germany
    Brand Name: Wickon Q7 Thermal Profiler

    Payment & Shipping Terms:

    Price: $2,500.00/sets 1-4 sets
    Packaging Details: Wickon Q7 Temperature Profiling packing with carton
    Supply Ability: 10000000 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Warranty: 1year Customized Support: Thermal Profiling For Reflow Oven
    Product Name: Smt Oven Temperature Tester Whatspp: +8613424013606
    Wechat: JoyLY0322 Skype: Sensenhenhao
    Application:: Temperature Inspection In SMT Reflow Wave Oven Temperature Range:: -200℃~370℃
    Battery Type:: Rechargeable Lithium Polymer Battery Storage Capacity:: 4,000,000 Points
    Sampling Interval:: 0.05s To 86400s, Set As Per Requirements Accuracy:: ±0.5 ℃
    Port: Shenzhen



    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7

     WhatsApp:+8613424013606,skype:sensenhenhao wechat:Joyly0322



    Smt Oven Temperature Tester Features:

    1)Can analyze high / low temperature, temperature and time, calculate the slope, rise / fall computing

         and different peak and peak and poor;

    2)  can be calculated heating, holding time, cooling rate and heat treatment parameters;

    3)  temperature curve can be drawn throughout the process;

    4)  temperature uniformity can be directly printed test report or electronic file output test reports;

    5)  simulation curve function, process optimization, test date and time

         Output F) company name, product name, and notes information processing.

    6) Name:Professional Wickon Thermal Profiler Thermocouple Profiler SMT Thermal Profiling for Reflow Oven

    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7

    Fast, accurate and economical process temperature profiling
    Smt Oven Temperature Tester  Hardware Advantages
    1.With MINI appearance, with narrow product, within the industry as the most thin, highly integrated chip design, more advanced
    technology; the test is low, higher high-temperature furnace through a narrow, application industry and the wider field;

    2.The full realization of USB communication and USB charging function, truly no need to deliberately charging 365 days;

    3.WICKON temperature tester entire family includes series X6.X8.X10.A6L.Q7.Q10.Q12.Q15.Q24 ,Q32 and so on products. Model is
    complete, up to the maximum number of channels as much as 32, the most in the industry.

    4.The real use of FLASH chip, can automatically save data in case of any unexpected power outages;
    5.All the chips inside the instrument effectively military-grade temperature up to 105 degrees

    6.British with green LABFACILITY thermocouple plug, the reaction speed of 0.1 seconds, more accurate
    Smt Oven Temperature Tester Software Advantage
    1.Has ISO9000 file filled traceability, easily filled history temperature curve, superuser privileges may be arbitrarily
    correction curve

    2.PWI analysis comes at no extra additional costs, easy set reflow process engineers to optimize the process parameters according
    to the guidelines PWI

    3.Craft editing window highly integrated, operating in a window you can edit all process technology, without switching between
    multiple windows settings, operation more simple

    4.You can simultaneously test 24 sets of data, and then import the PC computer together, one by one arbitrary curve analysis,
    saving testing time

    5.The software comes with data import and export functions to facilitate data analysis and statistical curve

    6.Powerful component features, has a curved cut, add and modify the temperature of the line. Between any two points and two data
    analysis, information edit notes, and save as curve editing

    7.Wave energy test automatic partitioning, automatic on PROFILE display maximum temperature and preheat peak, automatic peak
    analysis flatness

    Smt Oven Temperature Tester Specification:

    Project

    Description

    Commodity

    temperature curve tester

    Temperature range

    -200~370

    Operating temperature

    0~105

    The total storage capacity

    4,000,000points

    Battery

    Without deliberately charging, automatic replenishment capacity, the real 365 without charge

    Number of Channels

    4,6,7,8,10,12,15,24

    Sampling interval

    0.05s~86400s( Can be set according to the testing requirements )

    Thermocouple Types

    K

    Accuracy

    ±0.5

    Battery Type

    Rechargeable lithium polymer battery

    Insulated box Weight (kg)

    0.52KG

    Insulated box size (mm):L*W*H

    145mm*90mm*36mm

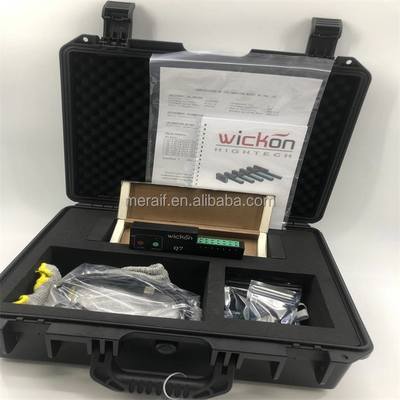

    Configuration List:

    1: Wickon box

    2: Manual

    3: insulation box

    4: Data logger

    5: High temperature gloves

    6: data cable

    7: Insight Software

    8: Thermocouple

    9: The factory calibration report

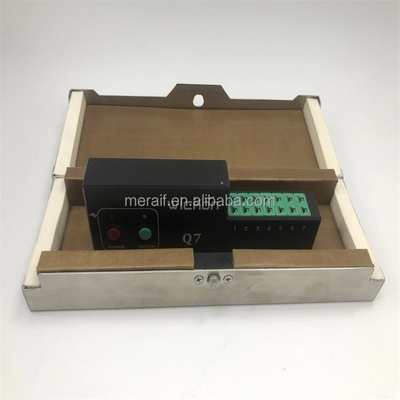

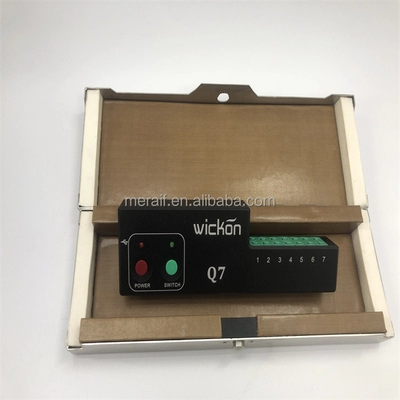

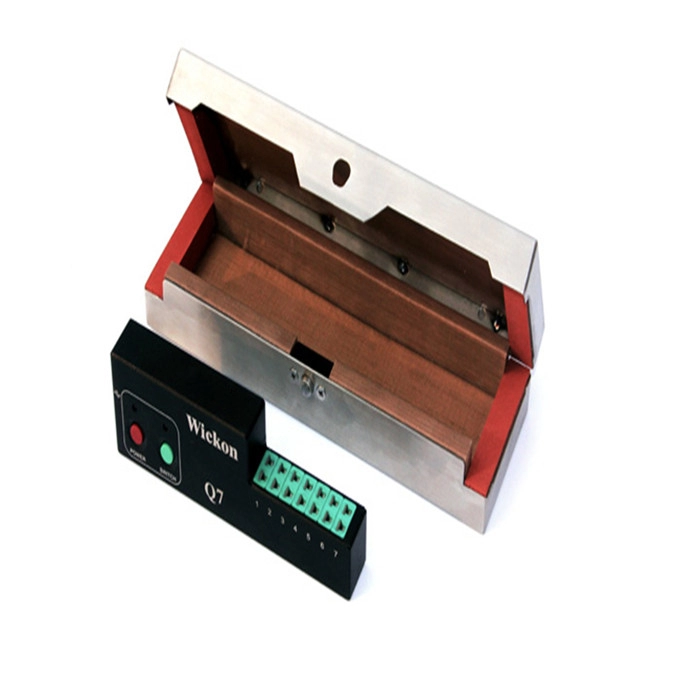

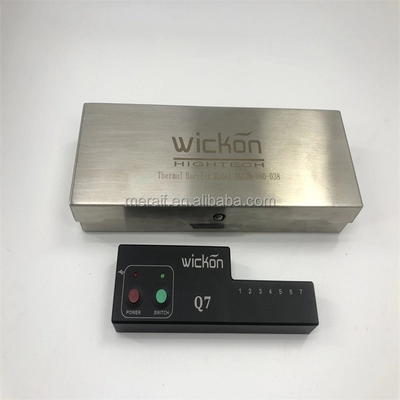

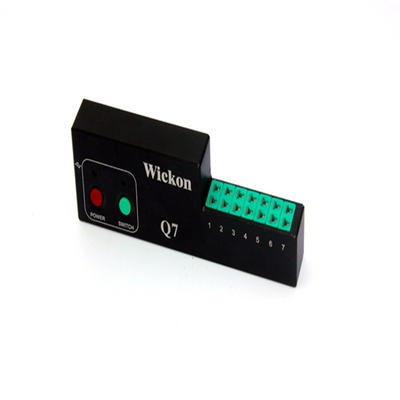

    Smt Oven Temperature Tester picture show:

    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7

    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7

    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7



    Smt KIC Wickon Thermal Profiler 7 Channel Type Smt Oven Temperature Tester Wickon Q7
