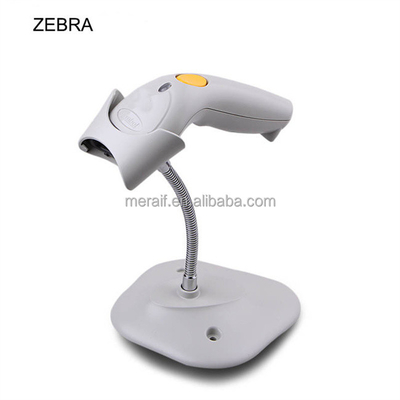

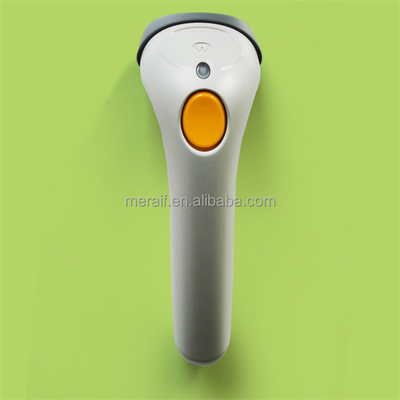

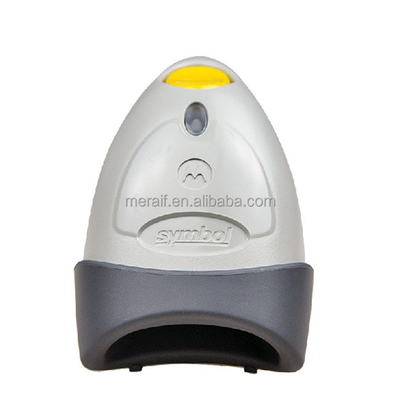

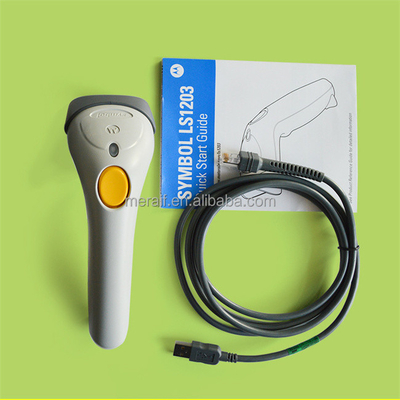

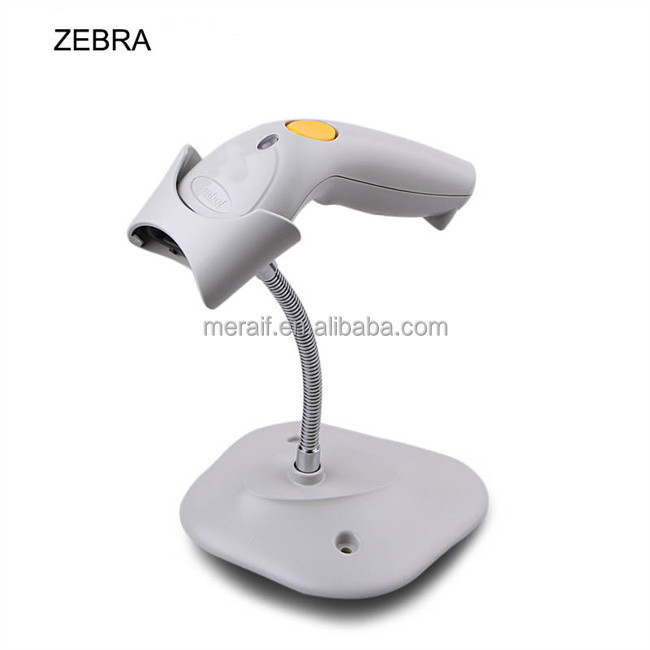

For zebra scanner LS1203 Handheld linear laser scanner Wireless Barcode Scanner

Scanner Type

Bi-directional

Light Source (Laser)

650nm laser diode

Scan Rate

100 scans per second

Print Contrast Min

30% minimum reflectance

Roll (Tilt)

1 ± 30° from normal

Pitch

2 ± 65°

Skew (Yaw)

3 ± 60°

Decode Capability

UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5

Interfaces Supported

RS-232; Keyboard Wedge; USB

Operating Temp

32° to 122° F/0° to 50° C

Storage Temp

-40° to 158° F/-40° to 70° C

Humidity

5% to 95% relative humidity, non-condensing

Drop Specs

Withstands multiple 5 ft./1.524m drops to concrete

Ambient Light Immune to direct exposure of normal Immunity

office and factory lighting conditions, as well as direct exposure to sunlight

Beeper Volume

User-selectable: three levels

Beeper Tone

User-selectable: three tones

Electrostatic Conforms to 15 kV air discharge and 8 kV Discharge (ESD)

of contact discharge

Electrical Safety

UL1950, CSA C22.2 No. 950, EN60950/IEC950

EMI/RFI

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori

Laser Safety

IEC Class 1
