Alibaba supplier SMT solder paste mixer machine online Nstart 600

Alibaba supplier SMT solder paste mixer machine online Nstart 600

    • Alibaba supplier SMT solder paste mixer machine online Nstart 600
    • Alibaba supplier SMT solder paste mixer machine online Nstart 600
  • Alibaba supplier SMT solder paste mixer machine online Nstart 600

    Product Details:

    Place of Origin: CHINA
    Brand Name: SMT Consumables
    Certification: CE
    Model Number: Solder cream mixer

    Payment & Shipping Terms:

    Minimum Order Quantity: smt pick and place machine 1 set
    Price: 30000-50000usd/set
    Packaging Details: packing with wooden case
    Delivery Time: within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month
    Usage: smt electronice factory
    Theory: smt pick and place machine
    Contact Now
    Detailed Product Description
    Brand Name:: Pick And Place Machine Skype: Sensenhenhao
    Whastapp/wechat: +8613424013606 Website: Www.wickonsmt.com
    Application: SMT Assembly Production Line Power Supply: AC220V 50Hz / AC110V
    Film Materials: Privacy Material Usage: SMD LED SMT
    Applicable Components::: 0402~5050 Web: Www.meraif.en.alibaba.com

    Wickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixer

    solder paste mixer catalogue

    Solder cream mixer Specifications:

    Working voltage: 220 v AC( 50 hz) 60 w

    A rotational speed: 1400 RPM; Secondary rotation: 400 RPM

    Ability to work: 500 g * 2 cans

    Can accept solder paste pot M tank diameter Φ 60-67 standard Φ

    S tank diameter: Φ 53 - Φ 60 (option, please contact the supplier)

    L tank diameter :Φ 67 - Φ 74

    Every time adjust time setting :0.1 ~ 9.9 minutes, 0.1 minutes;

    10 ~ 30 minutes, adjust 1.0 minutes at a time.

    Display and warning LED digital display, warning lights flashing and a buzzer

    The machine size 410 * 410 * 490 mm (D * W * H)

    Model NSTAR - 600

    The net weight: 45 kg

    Solder paste mixer price list

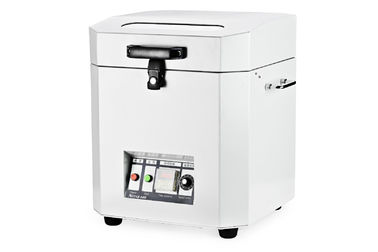

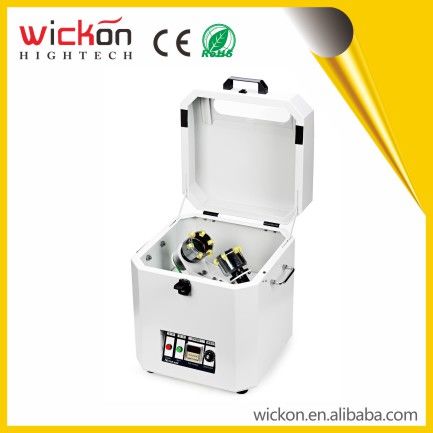

    Solder cream mixer picture show:

    Wickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixerWickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixerWickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixerWickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixer Contact Supplier

    Wickon high voscosity SMT solder paste mixer /SMT mixer /Solder cream mixer



    NSTAR-600 solder paste mixer The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees,The tank is located in the upper end of the paste continuous downward movement,Located at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering when.Its characteristics are as follows:



    A, Mixing does not require prior paste retreat of ice.

    B, Special control circuit, mixing time and speed can be adjusted, easy to operate.

    C, Paste 45 degrees rotation, along the axis direction, not attached to the tank cover paste.

    D Smooth running, low noise, with the natural temperature in the mixing process, the effect of removing bubbles.

    E, Paste pot without opening the lid, convenient, safe, suitable for various packing paste pot clamp.

    F, Without water, does not destroy the shape of tin.

    G, Power single 220V, with a safety device, to ensure personal safety
