|Place of Origin:||CHINA|
|Brand Name:||smt pick and place machine|
|Model Number:||pick and place machine|
|Minimum Order Quantity:||smt pick and place machine 1 set|
|Packaging Details:||packing with wooden case|
|Delivery Time:||within 15 days after payment|
|Payment Terms:||TT,western union,paypal and so on|
|Supply Ability:||300 sets per month|
|Usage:||smt electronice factory|
|Theory:||smt pick and place machine|
|Brand Name::||Pick And Place Machine||Skype:||Sensenhenhao|
|Application:||SMT Assembly Production Line||Power Supply:||AC220V 50Hz / AC110V|
|Film Materials:||Privacy Material||Usage:||SMD LED SMT|
Please feel free contact to get more details.
LED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine line
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
pick and place machine Technical Specifications:
|Dimension of PCB||60×65~400×350mm|
|The thickness of PCB||0.5-4mm|
|Mounting Head Number||20|
|The Range of Components||0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect)|
|Position Way||Image recognition+Algorithm Compensation|
|Picking Way||Picking at the same time|
|Electronic Parameter||Simple -Phase 220V AC 50HZ3.5KVA|
|Air Source Requirement||Dry air 0.45Mpa~0.6Mpa 200L/min|
pick and place machine Functions:
1.Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.
2.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.
3.Digital test pressure, automatically process and alarm when it didn't pick the components successfully
4.Three-sector on transmission system, reduce the time for delivering the boards
5.Fitted with 48 feeder lanes
6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor
7.Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.

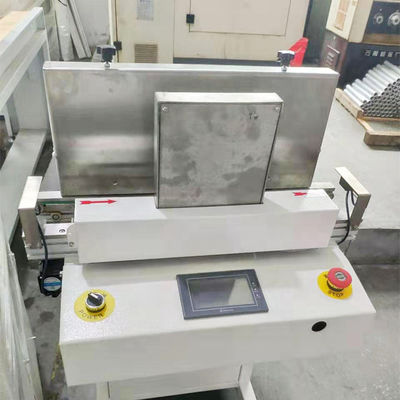

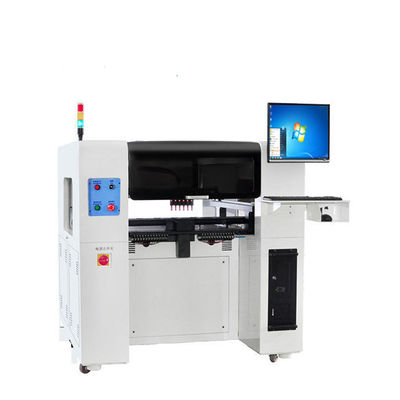

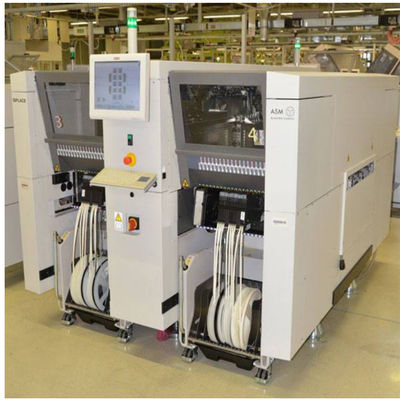

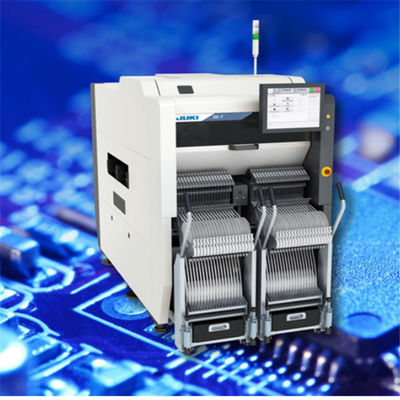

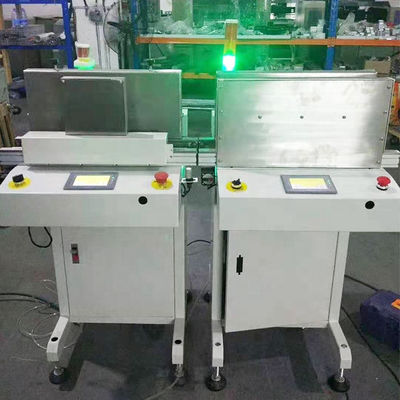

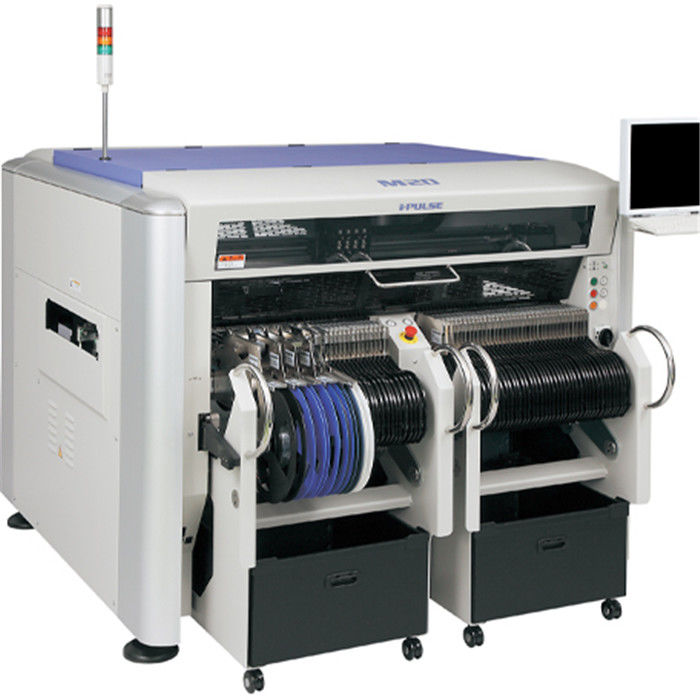

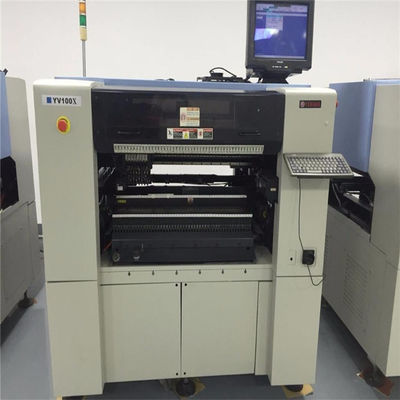

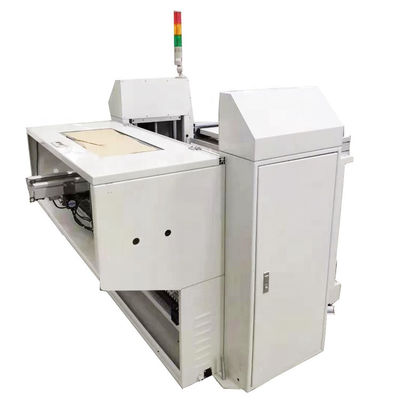

pick and place machine picture show:
