Aluminum ESD MAGAZINE /PCB RACK ESD Magazine Rack

Product Details:

Place of Origin:	China
Brand Name:	ESD PCB magazine
Certification:	CE
Model Number:	Magazine ESD PCB Storage Rack

Payment & Shipping Terms:

Minimum Order Quantity:	SMT magazine pcb rack 5 pcs
Price:	SMT magazine pcb rack
Packaging Details:	SMT magazine pcb rack packing with foam+wooden case
Delivery Time:	SMT magazine pcb rack within 5 days after payment
Payment Terms:	TT,western union,paypal and so on
Supply Ability:	10000 pcs per month SMT magazine pcb rack

Contact Now

Detailed Product Description

Feature:	Esd Protection, Esd Protection	Usage:	Industrial
Material:	Stainless Steel, Stainless Steel	Weight Capacity::	30kg
Width:	400mm, 5.0mm	Packing:	PVC Individual Package For Each Roll
Whatsapp:	+8613424013606	Function:	Antistatic
Type:	Push-Back Pallet Rack	Skype:	Sensenhenhao
Email:	Joy@wickon.net

Aluminum ESD MAGAZINE /PCB RACK ESD Magazine Rack

pcb Magazine Specifications

1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.

2.Adjustable through screws,gear adjustment.

3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.

4.Surface resistance: 104~106 ohm.

5.Base: P-Conductive PS, M-Zincification Iron

6.Adjustment: G-Gear track adjustment, S-Screw adjustment

7.Max tolerant temperature: 60°C,120°C,160~200°C different material

8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs

Reversible and chain adjustment ESD SMT magazine pcb rack

Antistatic SMT pcb rack

SMT ESD Magazine Rack

1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
  2) Screw and gear adjustment.
  3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
  4) Surface resistance: 10e4~10e6 Ohm
  5) Base: Conductive plastic or stainless metal

Description

A: Overall Size: 355*320*363mm. 30pcs of PCB Plates can be stored.
B: Overall Size: 355*320*263mm. 20pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal.
Gear track allow easy operation.

Surface resistance: 104~106Ω
Overall Size: 355*315*580mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(80-250)mm
Side guide slot: depth 3.5mm, width 8mm, pitch 10mm
The top and bottom boards are made of plastic. Stationary type.
Adjustable through screws.

Surface resistance: 104~106Ω
Common type and heat-resistance type are available
Overall Size: 355*320*563mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal. Stationary type.
Adjustable through screws.(Allowed to be put in ageing chamber.

Surface resistance: 104~106Ω
Resistant to 120℃
Overall Size: 460*400*563mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 460*(50-330)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal. Stationary type.
Adjustable through screws.(Allowed to be put in ageing chamber.

Surface resistance: 104~106Ω
Common type and heat-resistance type(120℃ ) are available.
Overall Size: 535*460*570mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 535*(50-390)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal.
Gear track allow easy operation

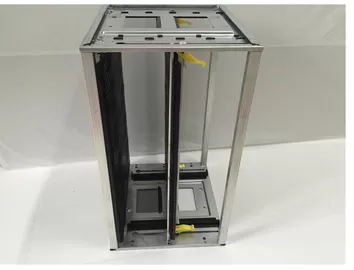

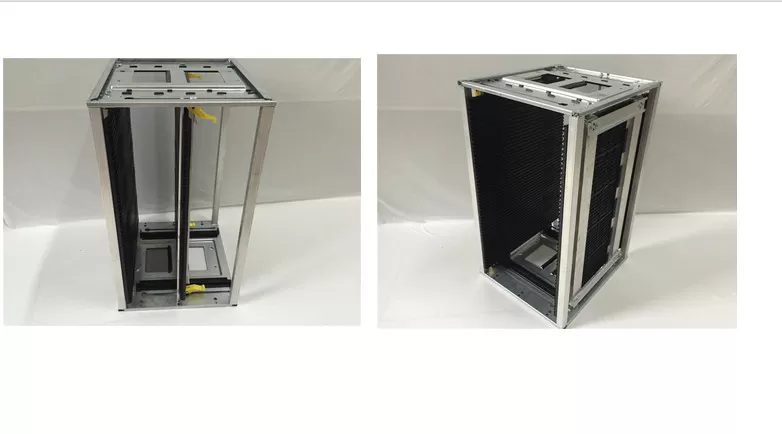

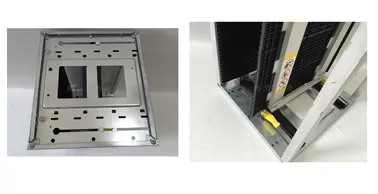

pcb Magazine Picture Show
