Place of Origin: | Germany |
Brand Name: | WICKON A6L thermal profile |
Model Number: | WICKON A6L thermal profiler |
Minimum Order Quantity: | WICKON A6L thermal profiler 1 set is accepted |
---|---|
Price: | 3000-5000usd one set |
Packaging Details: | wickon thermal profiler packing with foam+carton |
Delivery Time: | smt reflow thermal profiler delivery within 7 days |
Payment Terms: | wickon A6L profiler pay by TT |
Supply Ability: | 600sets reflow oven profiler per month |
Item: | Wickon A6L Thermal Profiler | Testing Channel: | 6 Channels |
---|---|---|---|
Sampling Frequency: | 0.05s~60Min | Resolution: | 0.1℃ |
Precision: | ±0.5℃ | Max. Inner Runtemperature: | 105℃ |
Temperature Range: | -150℃~1370℃ | Run Voltage: | 3.7V~4.2VDC |
Function: | PCC Intelligent Analysis Module | Language Version: | Chinese,Endlish |

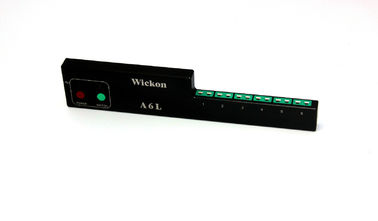

SMT oven temperature loggers WICKON A6L thermal profiler
More details for thermal profiler please feel free contact joy@wickon.net,skype:sensenhenhao,whatsapp:+8613424013606
Time and temperature are very important variables in soldering printed circuit boards. It is important to bring the circuit board assemblies up to a high enough temperature for a long enough period to effectively solder the components to the board. Getting the temperature up too high or heating the assembly too quickly can result in component damage. Not heating things up enough results in poor soldering and reliability problems.
WICKON manufactures a variety of instruments to assist you in accurately monitoring the time and temperature variables in your electronics manufacturing processes. This process is called Thermal Profiling.
Shenzhen Wickon Electronic Technology Co., Ltd.(www.wickonsmt.com /www.wickon.net) is the profiler of choice! Chosen by virtually every one of the world's top 100 electronics manufacturing companies. Compact and very easy to use .
WICKON Thermal Profiler

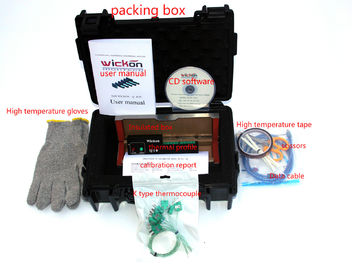

Detailed structure:
1: Wickon box
2: Manual

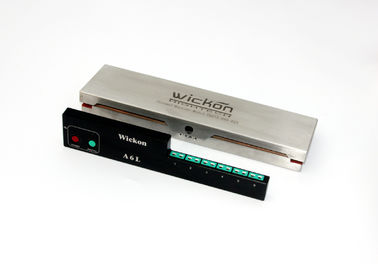

3: insulation box
4: Data logger
5: High temperature gloves
6: data cable
7: Insight Software
8: Thermocouple
9: The factory calibration report
wickon thermal profiler Advantages:
1. Ensure that products meet the welding specifications
2. highlighting the hot furnace cooling
3. Set oven to save time and money required
4. so that production can be maximized
5. Provide ISO9000 traceability process required proof
Item | Details |
Product | WICKON thermal profile |
Temperature range | -200C--1370C |
Work temperature | 0-105C |
Total storage | 4,000,000points |
battery | Without deliberately charging automatically add power, truly 365 without charge. |

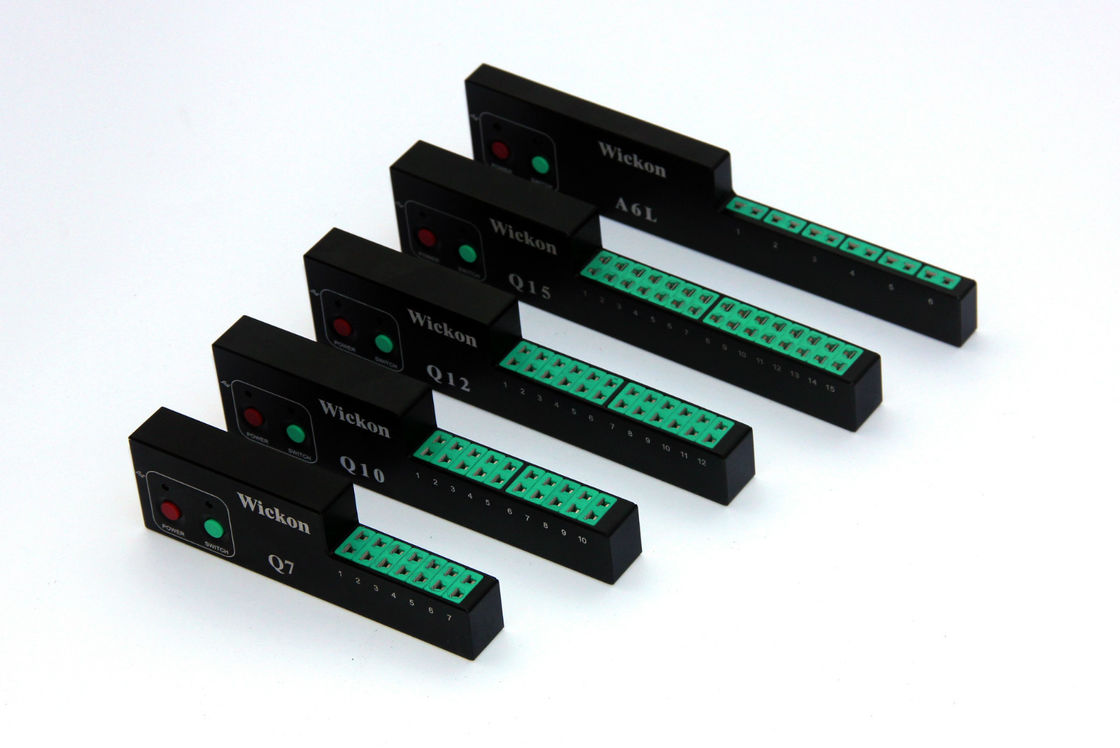

No. Of channel | 6.7.10.12.15.24.32 |
sampling interval | 0.05s~86400s(Can be set according to testing requirements) |
Thermocouple type | K |
Accuracy | +-0.5C |
Battery type | Rechargeable lithium polymer battery |
Start Mode | Direct mode, mode conditions (air and start testing length setting) |
Weight of Insulated box | Depending on the model and different heat time |
Size of Insulated box | Different specifications and heat time to decide |
