    Product Details:

    Place of Origin: China
    Brand Name: ESD PCB magazine
    Certification: CE
    Model Number: Magazine ESD PCB Storage Rack

    Payment & Shipping Terms:

    Minimum Order Quantity: SMT magazine pcb rack 5 pcs
    Price: SMT magazine pcb rack
    Packaging Details: SMT magazine pcb rack packing with foam+wooden case
    Delivery Time: SMT magazine pcb rack within 5 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 10000 pcs per month SMT magazine pcb rack
    Contact Now
    Detailed Product Description
    Feature: Esd Protection, Esd Protection Usage: Industrial
    Material: Stainless Steel, Stainless Steel Depth:: 5mm, 3.5mm
    Weight Capacity:: 30kg Width: 400mm, 5.0mm
    Packing: PVC Individual Package For Each Roll Height: 563mm, 10.0mm
    Whatsapp: +8613424013606 Function: Antistatic
    Type: Push-Back Pallet Rack Skype: Sensenhenhao
    Email: Joy@wickon.net

    Reversible and chain adjustment ESD SMT magazine pcb rack,ESD pcb storage racks



     pcb Magazine  Specifications

    1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.



    2.Adjustable through screws,gear adjustment.



    3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.



    4.Surface resistance: 104~106 ohm.



    5.Base: P-Conductive PS, M-Zincification Iron



    6.Adjustment: G-Gear track adjustment, S-Screw adjustment



    7.Max tolerant temperature: 60°C,120°C,160~200°C different material



    8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs



    Reversible and chain adjustment ESD SMT magazine pcb rack

    Antistatic SMT pcb rack

    Antistatic SMT pcb rack

    Antistatic SMT pcb rack



     SMT ESD Magazine Rack

      1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
      2) Screw and gear adjustment.
      3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
      4) Surface resistance: 10e4~10e6 Ohm
      5) Base: Conductive plastic or stainless metal



    Description

    A: Overall Size: 355*320*363mm. 30pcs of PCB Plates can be stored.
    B: Overall Size: 355*320*263mm. 20pcs of PCB Plates can be stored.
    Sizes of PCBs to be accommodated: 350*(50-250)mm
    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
    The top and bottom boards are made of metal.
    Gear track allow easy operation.

    Surface resistance: 104~106Ω
    Overall Size: 355*315*580mm. 50pcs of PCB Plates can be stored.
    Sizes of PCBs to be accommodated: 350*(80-250)mm
    Side guide slot: depth 3.5mm, width 8mm, pitch 10mm
    The top and bottom boards are made of plastic. Stationary type.
    Adjustable through screws.

    Surface resistance: 104~106Ω
    Common type and heat-resistance type are available
    Overall Size: 355*320*563mm. 50pcs of PCB Plates can be stored.
    Sizes of PCBs to be accommodated: 350*(50-250)mm
    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
    The top and bottom boards are made of metal. Stationary type.
    Adjustable through screws.(Allowed to be put in ageing chamber.

    Surface resistance: 104~106Ω
    Resistant to 120℃
    Overall Size: 460*400*563mm. 50pcs of PCB Plates can be stored.
    Sizes of PCBs to be accommodated: 460*(50-330)mm
    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
    The top and bottom boards are made of metal. Stationary type.
    Adjustable through screws.(Allowed to be put in ageing chamber.

    Surface resistance: 104~106Ω
    Common type and heat-resistance type(120℃ ) are available.
    Overall Size: 535*460*570mm. 50pcs of PCB Plates can be stored.
    Sizes of PCBs to be accommodated: 535*(50-390)mm
    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
    The top and bottom boards are made of metal.
    Gear track allow easy operation

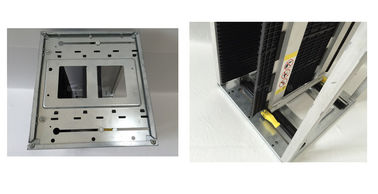

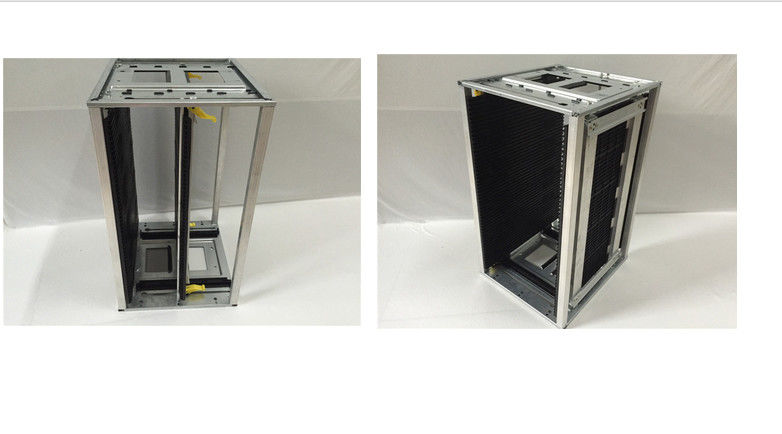

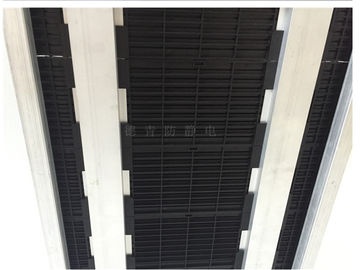

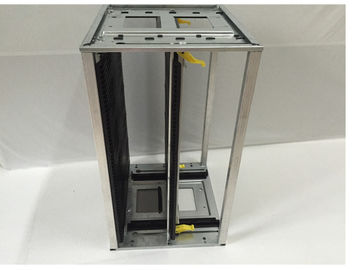

       pcb Magazine Picture Show

       Reversible and chain adjustment ESD SMT magazine pcb rack,ESD pcb storage racksReversible and chain adjustment ESD SMT magazine pcb rack,ESD pcb storage racks
