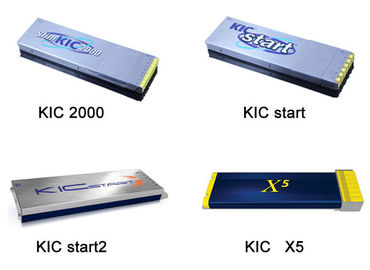

Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

    • Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler
    • Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler
    • Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler
    • Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler
  • Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

    Product Details:

    Place of Origin: shenzhen
    Brand Name: WICKON
    Certification: CE
    Model Number: A6L

    Payment & Shipping Terms:

    Price: 5500
    Packaging Details: packing with wooden case
    Delivery Time: within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month
    Minimum Order Quantity: 1
    Usage: Industrial, reflow oven temeperature profile test
    Theory: Temperature Recorder and Analytical instruments
    Contact Now
    Detailed Product Description
    Email: Joy@wickon.net Skype: Sensenhenhao
    Whatsapp: +8613424013606 Website: Www.wickon.net
    Agency: Would You Like To As Our Thermal Profiler Agnecy?

    Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

    Advantage than others

    Wickonvsothers

    Connector:USB (connection and charger)vscom connector

    Data points:4000000 pointsvs224,640 points

    Channel:more(6.7.10.12.15.24)vsless(7.9.12)

    Chip :can keep all the data when no powervscan’t keep

    Resolution:+_0.01 accuracyvs+_0.1 accuracy

    Volume :small easy to takevsbig hard to take

    Software:just one window can editor all item dataVsneed one by one

    Temperature Range:-150℃~1370℃vs-150C to 1050C

    Start-up model :BY air,temperature and switchvsjust buy temperature or switch

    Technology Parameters

    Memory

    5,000,000points

    Test Channel

    6,7,10,12,15,24channel

    Sampling frequency

    0.05s~60Min

    Resolution

    0.1

    Precision

    ±0.5℃(Full scale)

    Max. inner runtemperature

    105

    Temperature range

    -150~1370

    Run Voltage

    3.7V~4.2VDC

    Thermocouple Types

    K wire(TT ORGG0.010inch/0.254mm)

    Start-up mode

    Switch button,starts the temperature

    Language version

    Chinese (Simplified and Traditional), English, etc.

    simulation fuction

    with

    PCC intelligent analysis module

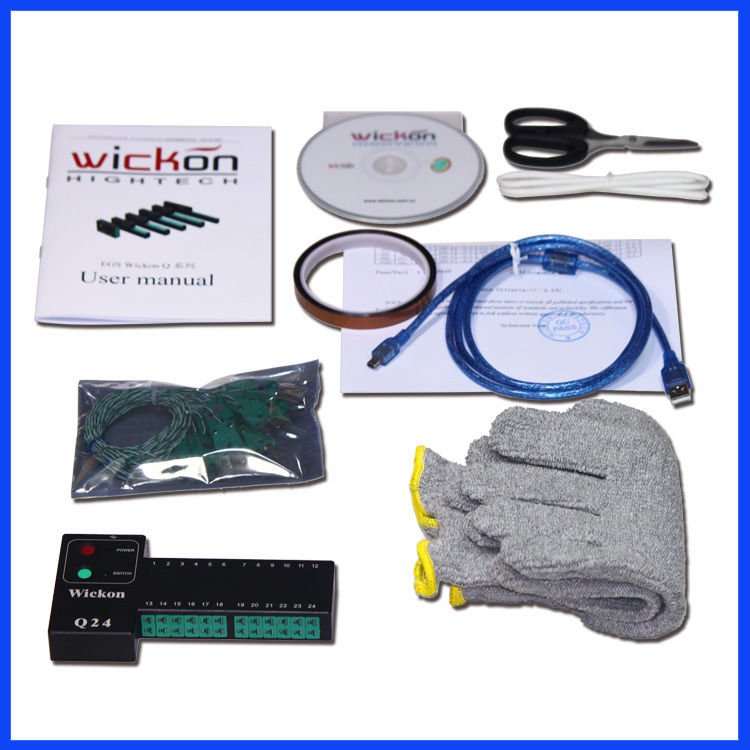

    Picture Show

    Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profilerWickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

    Our Products smt thermal profiler

    Wickon thermal profiler A6L,KIC X5 profiler,kic start thermal profiler,smt oven profiler

    1.Comprehensive Monitoring for Temperature curve

    For high temperature industries(sintering furnace, annealing furnace, IR oven, spray, reflow and wave soldering, etc.) Statistical analysis for process, Control of product quality exactly, improve work efficiency, reduce scrap rates, to reduce product costs .

    Our SURVEYYOR can be adjusted enhancements to control the furnace temperature stability, than reduce the amount of our test board ,not only save company's cost , but also improve work efficiency.

    Temperature chart recorder also can enter unleaded process quickly.Whenever the introduction of a new product or paste than they need to be optimized for the reflow oven set - which is a time-consuming process.Equipment ROS of Wickon by calculating the best ovens, product and recycled to set the target temperature curve settings.Only a few seconds instead of several hours from others.

    A: High efficiency, continuous data stored 24 times, downloaded to a computer packet analysis and processing;

    B: modular analysis mode, simple, fast analysis system based on PC (Windows)

    And PDA (Pocket) for data analysis;

    C:Low power, battery, up to 168 hours of continuous use of the above,

    365 ultra-long standby, without deliberately charging;

    D:Communication mode uses USB transfer, for a variety of work environments and application areas

    E: rigorous manufacturing process and accurate calibration services, all correction are used FLUKE-724 school

    Positive, with China's largest institutional partners CTI calibration.

    F: ensure that each machine is accurate, reliable, small size, large storage capacity (5,000,000 Data

    Point), the use of FLASH memory chips, will not lose any accident data;

    G: High stability

    H:fairly long life, there is now a lot more than a decade of use WICKON life company

    I:multichannel recorder obtain maximum element temperature curve.

    J:insulated box can cope with the most severe heat deputy shot process (using black box technology)

    K:Powerful Insight software is now with the process of measuring volatility,

    L: temperature profile and the ability to predict SPC calculations.

    2. the principle FOR wave oven temperature sensor :

    (1) Data Logger

    Wickon Q series data loggers are used in the recycling process today's most accurate recorder. It has a precision of± 0.5, 0.1 degree resolution and 5,000,000 readings more storage capacity, it can provide detailed information on the depth of the analysis process. X series with a direct USB communication characteristics, so that information can be transmitted as quickly as possible from the data recorder to a PC.

    (2) Hot Box

    Wickon used in lead-free solder protection under common temperature loggers. It uses the "black box" flight recorder on an aircraft instrument same insulation technology, is enclosed in a rugged stainless steel housing.

    (3) the basic principles of thermocouple

    A conductor or semiconductor and B of two different materials welded together, form a closed loop. When there is a temperature difference between two contacts conductors A and B, they generate thermal electromotive force between the two, a phenomenon known as the thermoelectric effect. Thermocouple is to use this effect to work.

    (4) Insight Software Features

    Guide

    All the usual features are based wizard, such as tolerance curve, technical documents. Even with fairly complex analysis, the wizard guides you step by step through the process temperature curve test, make sure to complete all phases of the test and save training time.

    Alert

    The new features are available to alert you when an error prompt. Numerical analysis can give any one domain set alarms. If a value exceeds the limit, an alert appears on the screen so you can quickly identify the problem.

    SPC historical data to calculate

    Insight software enables users to quickly and easily with a temperature curve historical data for SPC calculations. So - to the stability and capacity of the welding process can be tested.
