Place of Origin: | USA |
Brand Name: | Temperature Tracking |
Certification: | CE |
Model Number: | KIC 2000 SMT Thermal profiler |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Temperature Tracking 2000-5000usd |
Packaging Details: | Temperature Tracking packing with wooden case |
Delivery Time: | Temperature Tracking within 15 days after payment |
Payment Terms: | TT,western union,paypal and so on |
Supply Ability: | 300 sets per month Oven Temperature Tester |
Usage: | Industrial, reflow oven temeperature profile test |
Theory: | Temperature Recorder and Analytical instruments |
Brand Name:: | SMT Thermal Profiler | Usage:: | Industrial, Reflow Oven Temeperature Profile Test |
---|---|---|---|
Theory:: | Temperature Recorder | Accuracy:: | ±0.5℃(Full Scale), ±0.5℃(Full Scale) |
Temperature Range:: | -150℃~1050℃ | Resolution:: | Variable 0.3C To 0.1C |
Internal Operating Temp:: | 0C To 105C | Sample Rate:: | 0.1 To 10 Per Second |
Brand:: | Temperature Tracking | Skype: | Sensenhenhao |
Whastapp/wechat: | +8613424013606 | Email: | Joy@wickon.net |
Web: | Www.wickonsmt.com |
Temperature Tracking Reflow Soldering Temperature Profil
Kic star Thermal Profiler
Intelligent Thermal Profiler
Robust Hardware – Ease of Use – Process Optimization
2 Year Warranty – 24 Hour Word Class Customer Support
Robust and Compact Hardware
This new and improved hardware is designed to withstand the roughest and toughest daily handling! The electronic circuitry is designed to tolerate a high level of voltage spikes that occasionally occur in some ovens and wave solder machines.
KIC is putting their money where their mouth is by offering a standard TWO YEAR warranty on this durable profiler.
The X5 is availalbe in 7, 9, and 12 channel versions using standard type K thermocouple connectors and uses standard AAA or recharageable batteries. Additionally you can power the X5 via the USB cable when connected to a computer. Get better data to precisely identify what is going on with each thermal profile and process in the factory.
Data Intelligence Software
The X5 software uses a modern, graphical interface that quickly and intuitively guides you through the task of profiling. Manual prediction capability comes standard with the X5, allowing you to manually adjust and improve upon your process or oven setup. The Navigator PowerTM software feature automates process improvements and optimization for you and ships standard with the X5. Within seconds, the Navigator Power will identify the single best oven setup.
The X5 also comes standard with SPC charting software that helps reveal changes in the profile over time.
The X5 hardware and software est
1.6 channels
2.accuracy +/-1.2degree
3.temperature range -150 to 1050 degree
4.resolution variable 0.3C to 0.1C
5.KICstart
The KICstart Thermal Profiler
The KICstart is a 6 channel datalogging thermal profiler. It features a more robust hardwareconfiguration than any other profiler on the market and an all new easy to use software platform. When theKICstart profiler has completed its run through the process, the internally logged profile is ready to bedownloaded to a computer.
The KICstart software features minimal initial setup and a radically simplified operator interfacethat eliminates tedious board mapping and oven measuring. The software is designed to be completelyintuitive and requires very little training. A series of screens with clear explanatory graphics guides youthrough the profiling process from beginning to end.
The KICstart uses different technology to complete its task of running profiles. The main differencebetween it and other profilers is the following:
♦ Air thermocouple – For all profiles run with the KICstart software the thermocouple pluggedinto the first channel on the KICstart must be the Air TC. This TC is positioned 1 inch in front ofthe leading edge of the board for all profiles run using KICstart software.
♦ Trigger temperatures – The KICstart uses trigger temperatures to start and stop the profile. TheStart temperature is defaulted to 2 degrees above the Maximum Product Start temperature. SeeGlobal Preferences for this value.
♦ Hardware Monitor - The combination of the KICstart and the KICstart software closely monitorsthe KICstartbattery, internal temperature and the product temperature even before you start aprofile. There are built-in checks in the software to insure that the product and KICstart are coolenough and battery voltage sufficient to complete a profile safely. As well it will offertroubleshooting suggestions if there is a problem with communication or thermocoupleattachment.
♦ Perfect Data – Through patent pending technology the KICstart is able to get you perfect dataevery time. At the completion of a profile the KICstart retransmits the data it has stored in itsmemory, once the communication cable is connected.
Specification
Accuracy |
+/- 2ºF (1.2ºC) |
Resolution |
Variable 0.3 to 0.1ºC |
Internal Operating Temp |
0ºC to 105ºC |
Thermocouple Compatibility |
Type K, 6TCs |
Temperature Range |
-150ºC to 1050ºC |
Computer Compatibility |
PC |
Power Requirements |
9V Alkaline battery |
Dimension |
Varies depending upon model and shield |
Process Window Index
The PWI is a single statistical number that measures how well your profile fits within your product`s thermal process window. The PWI provides an instant and objective conclusion whether your product profile is in spec, eliminating guesswork and opinion from process analysis. This helps you ensure that all your products on all your lines are manufactured with measurable, consistent quality
Mininum PC Requirements
400 MHz processor Celeron / 128Mb RAM
1 Gb available storage (for Product history records)
SVGA video 1024 x 768 resolution, 16-bit color
1 available serial port or USB port
1 available parrallel port or USB port
Operating system: Microsoft® Windows® 2000, XP
1 When the KICstart software is running on the same computer as the oven controller, and/or when additionalKICstart options are installed, a faster CPU and more RAM may be required.
2 A USB to Serial adapter is used to connect the KICstart for profiling.
3 Contact KIC for issues with operating systems other than those listed.

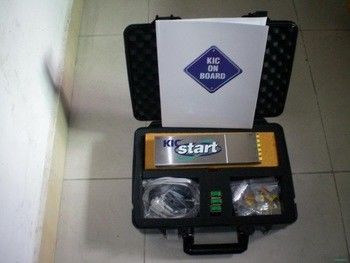

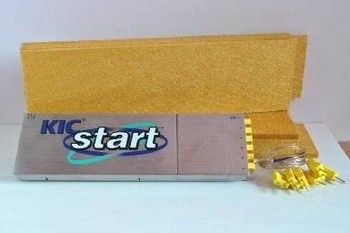

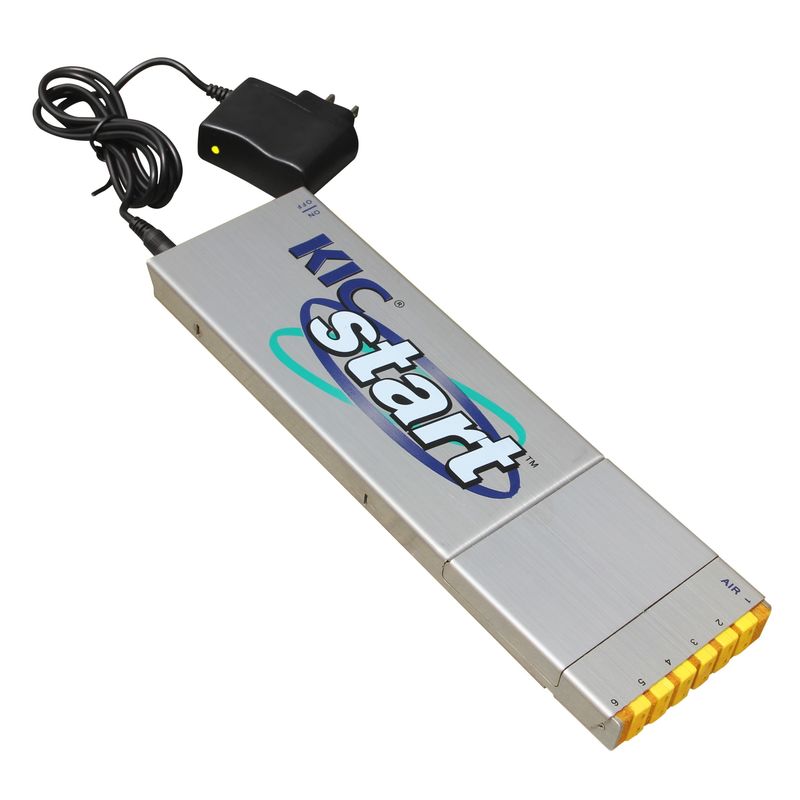

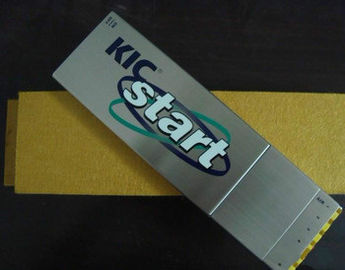

Thermal profiler KIC star Picture Show
Wickon hightesh offers temperature profiling systems in six major areas:
Oven Tracker Systems for the finishing, paint and powder coating industries
Furnace Tracker Systems for heat treatment processes and furnace surveys
Kiln Tracker Systems for tunnel & roller hearth kilns used in the process of firing ceramic products
Reflow Tracker Systems for PCB and electronics board manufacturing
Solar Tracker Systems for solar photovoltaic (PV) manufacturing
Food Tracke Systems for food processing
Why choose us?
Please feel free contact to get more details.
