smd equipment hot air gun electric soldering irons , Electric Soldering Gun of Plastic Welding Hot Air Gun
whatspp:+8613424013606,skype:sensenhenhao
hot air soldering machine
hot air rework tool
portable rework stationstation
| Product Specifications: |
| Console |
| Model | DES-560C |
| Air volume | 28L/min |
| Heating element | 110V/A1525 ;220V/A1526 |
| High temperature resistance sleeve | GP5 |
| Power consumption | 560W |
| Hot air temperature | 80-600℃ |
| Weight | 0.8kg |
| External dimensions | 32*20.5*6cm |
| Cord length | 1.6m |

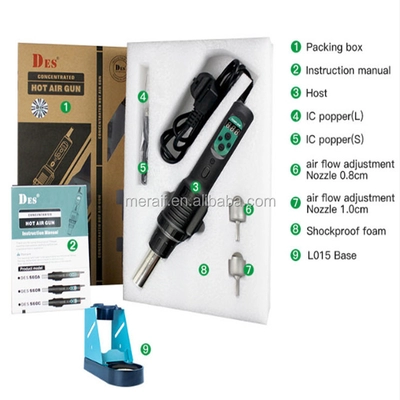

| packing list: |
| packing carton | 1 |
| manual | 1 |
| main body | 1 |
| IC popper | (large, small) 1 |
| spurt-tip A1130 | 1 |
| spurt-tip A1170A | 1 |
Electric Solder iron Gun Features:
1.Upgraded Hot Air small size, saving working space with the new design.
2.Smd Rework adopt vortex air outlet to reduce uneven temperature distribution.
3.The household hot air heat gun small body volume, saving working space, portable handle controlling, saving working time.
4.Smd Rework Soldering Station, adapting to desoldering chips of QFP, SOP PLCC & SOJ.
5.Setting cooling function:when turning off the power, the system continues sending cool air until the temperature is lower down to 80℃, protect the elements from high temperature damage.
6.Inside built-in temperature sensor, to ensure stable temperature of different air volume.
7.Static elimination design that is safe for sensitive elements.

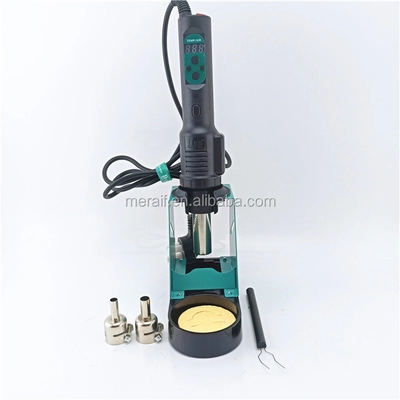

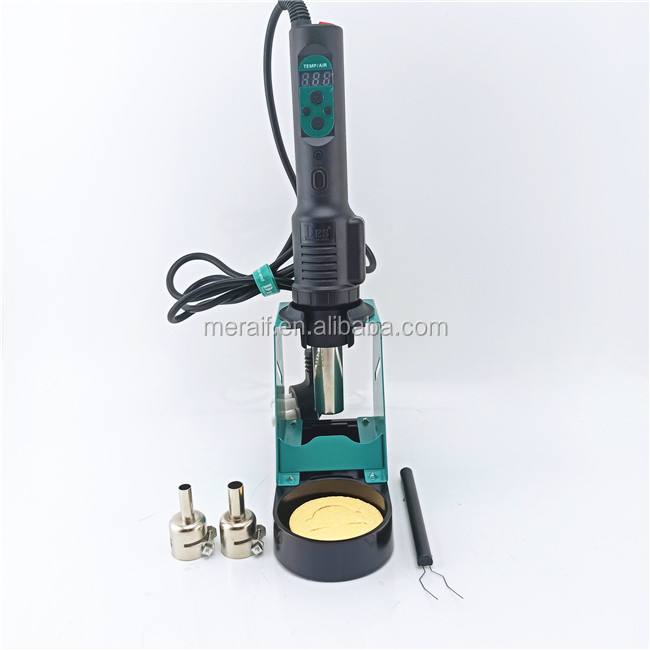

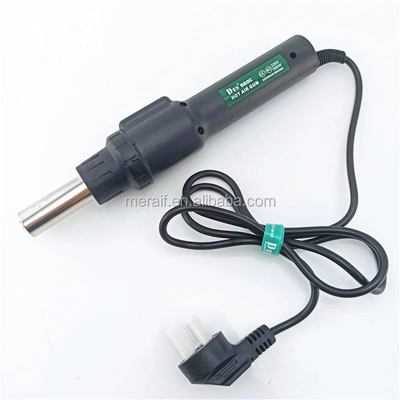

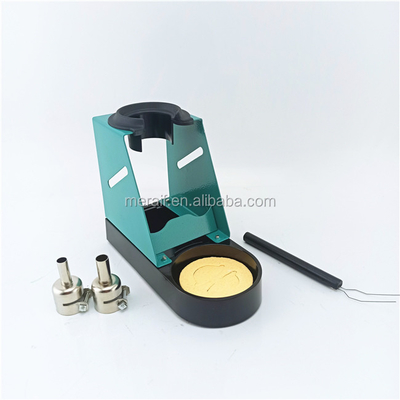

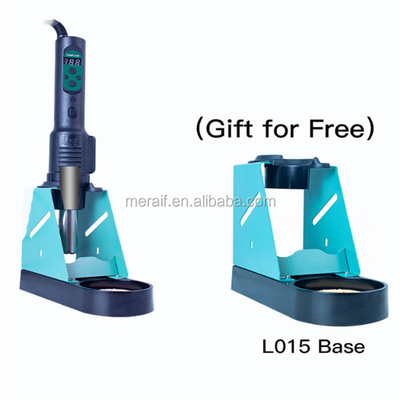

portable rework station picture show:
