ST 2205 hot air gun phone repair soldering desoldering smd rework station wholesale
whatsapp:+8613424013606,skype:sensenhenhao
This soldering station adopts the principle and technology of high-frequency eddy current heating to achieve high-strength lead-free soldering. In addition to being suitable for general soldering, it is also particularly suitable for situations such as large amounts of tin, thick terminals, and large solder joints. It is widely used in universities, research institutes, laboratories, production lines, maintenance departments and other welding occasions.
smd rework station details:
1. High frequency eddy current heating, fast heating and temperature recovery speed, more suitable for high temperature welding occasions, to achieve high-quality lead-free welding
2. Microcomputer control, button type temperature adjustment, digital temperature calibration, precise temperature control, easy control of the welding process
3.90W high power, full power design automatic sleep function
4. Password type temperature lock function, easy to manage, effectively guarantee the anti-static design of the production process, a variety of soldering iron tips are available
smd rework station parameter
Power supply voltage: AC220V 50HZ
Power: 90W
Temperature range: 50℃-500℃
Temperature stability: ±1℃
Resistance of soldering iron tip to ground: ≤2Ω
Voltage of soldering iron tip to ground: ≤2mV
Dimensions: L150*W130*H105

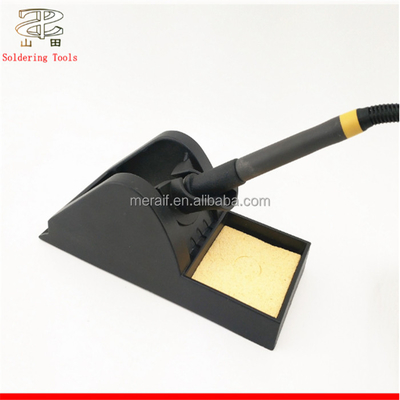

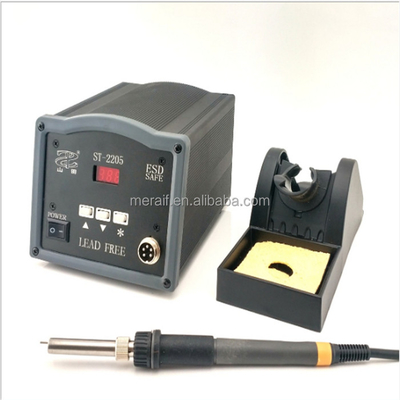

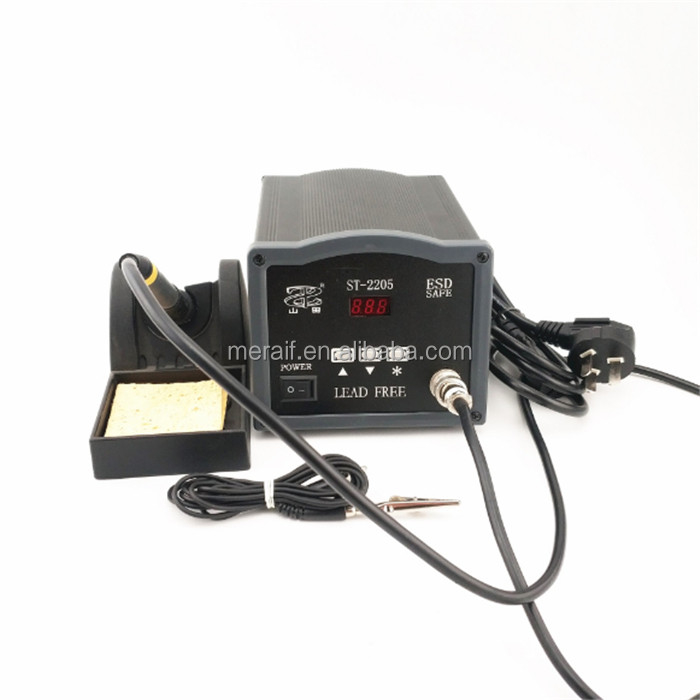

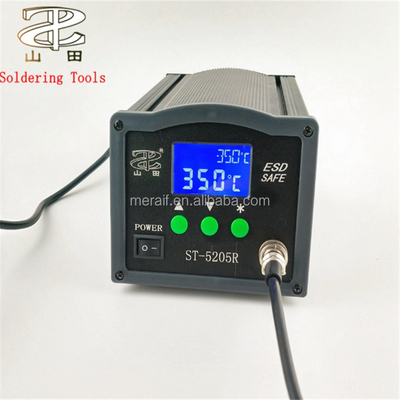

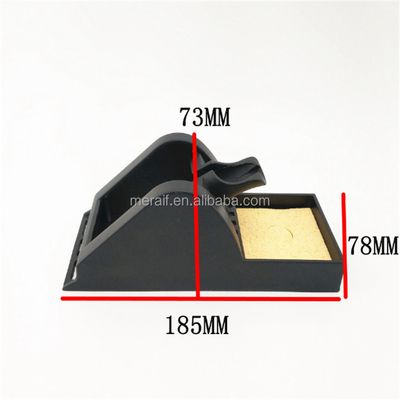

smd rework station picture show:
