Reel tape SMD counting machine / SMT components counter
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
SMD counting machine Specifications:
1.Full automactic counting, high accuracy, no error.
2.No risk of damage the tapes, we have designed to prevent it from dropping.
3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
4.The counter use drafting LCD screen, easy operating, full English display.
5.Use patent reflector,humanized operation platform.
6.Install bar code, convenience electronic component management.
7.Optical fiber sensor detect leak ,motor will stop working when detected leak.
SMD counting machine Product Advantage:
Bi-directional counting, will subtract count when the direction of the tape is reversed.
Tape pitch from 2mm upwards, ideal for counting 0201, 0402 etc.
Reel widths from 8mm to 72mm.
Simple operator interface simplifies pitch setting.
Makes an ideal tape inspection platform in addition to its counting function.
Rigid metal construction with a wide, sturdy base.
Portable and easy to use
It is used for counting taped electronic smd components/parts,like capacitor, resistor,etc
Components pitch:2,4,8,10,12,16,20,24,28,32,36,40,44,48,52,56 mm
Width of tape:8, 12, 16, 24, 32, 44, 56mm
Suitable for electronics production factory, SMT processing factory, SMD parts manufacturer, SMD parts supplier, and other industries related to electronic components.

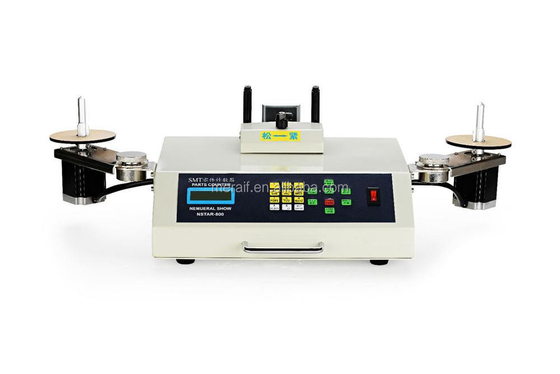

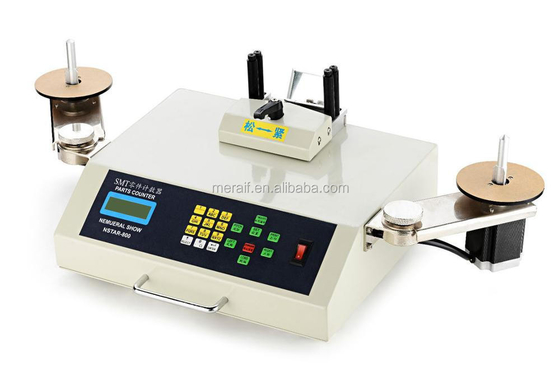

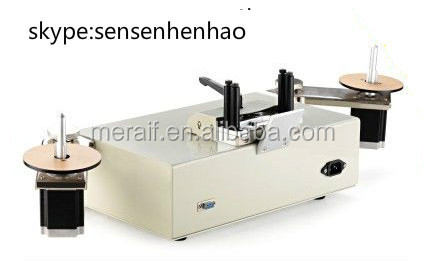

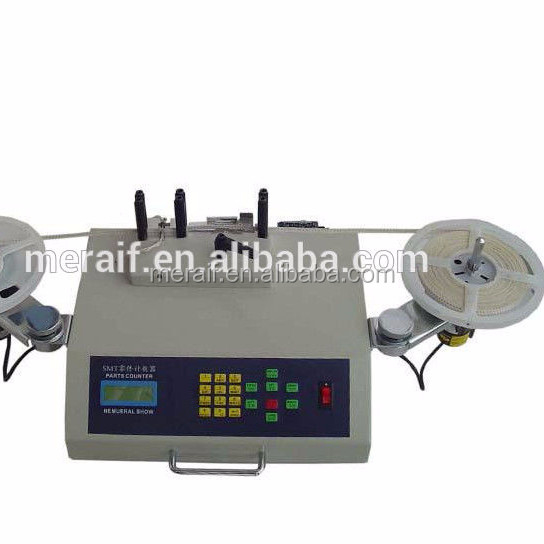

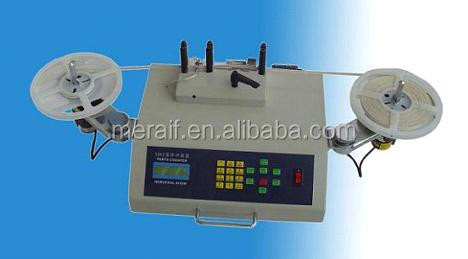

SMD counting machine picture show:
