Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine line
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Smt Manufacturing Line For Led Bulb Specifications:
| Model | 20 |
| Placement Speed | 52000CPH |
| Placement Accuracy | ±0.05mm |
| Machine Size(L×W×H) | 1790×1370×1500mm |
| Machine Weight | 1500kg |
| Dimension of PCB | 60×65~400×350mm |
| The thickness of PCB | 0.5-4mm |
| Feeder lanes | 48 |
| Mounting Head Number | 20 |
| The Range of Components | 0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect) |
| Position Way | Image recognition+Algorithm Compensation |
| Picking Way | Picking at the same time |
| Electronic Parameter | Simple -Phase 220V AC 50HZ3.5KVA |
| Air Source Requirement | Dry air 0.45Mpa~0.6Mpa 200L/min |
Smt Manufacturing Line For Led Bulb Functions:
1.Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.
2.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.
3.Digital test pressure, automatically process and alarm when it didn't pick the components successfully
4.Three-sector on transmission system, reduce the time for delivering the boards
5.Fitted with 48 feeder lanes
6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor
7.Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.

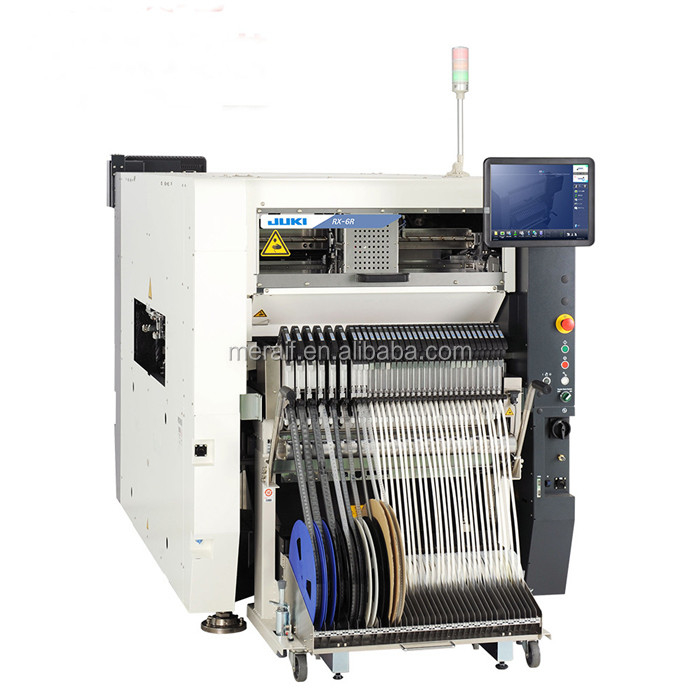

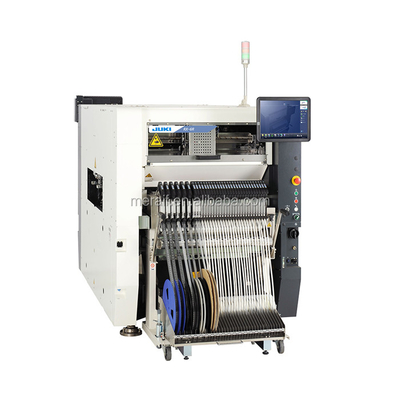

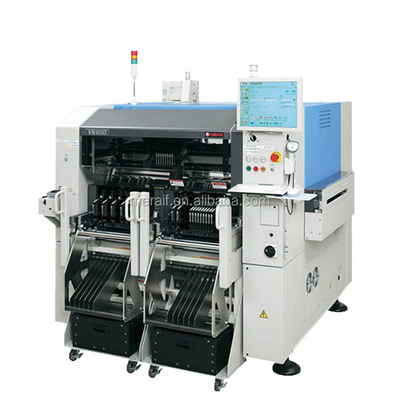

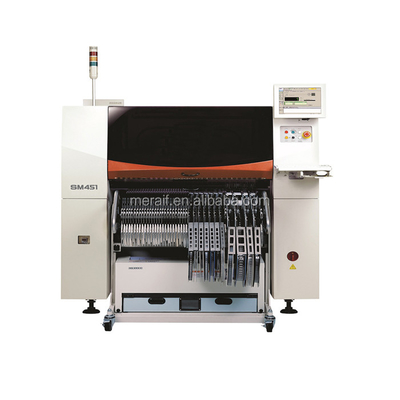

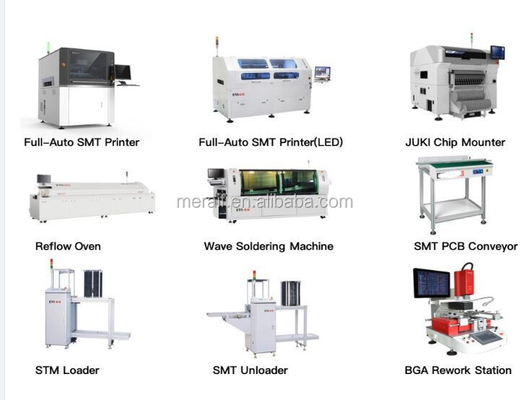

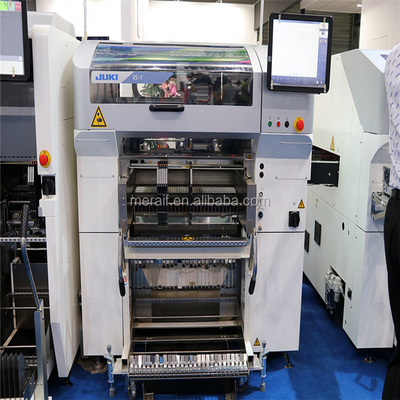

Smt Manufacturing Line For Led Bulb picture show:
