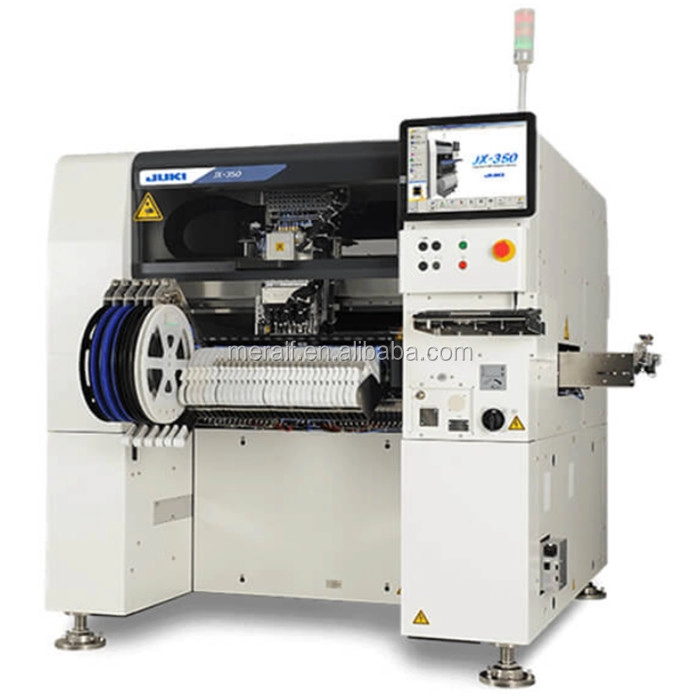

JUKI JX-350 SMT Placement LED Pick and Place Machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Introduce of JUKI SMT Placement
SMT production line machine high speed JUKI pick and place, JUKI chip shooter, JUKI SMT placement, for PCB assembly line.
Chip: 32,000CPH chip (Laser centering/Optimum); 21,000CPH chip (Laser centering / IPC9850)
From 0603 to 33.5mmsquare components
JUKI laser centering for high speed, high accuracy placement
Improved placement quality
Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.
High-precision placement of diffusion lenses
Capable of up to 1,500 mm long board production, top class board size in industry
Various supply methods
Specification of JUKI SMT Placement
| Model | JUKI JX-350 SMT Placement |
| Board size | 1time clamping | 650mm×360 |
| 2times clamping | 1,200×360 |
| 3times clamping* | 1,500×360 |
| Component height | 6mm/12mm | |
| Component size | 0603(0201) ~ 33.5mm | |
| Placement speed (chip) | Optimum | 32,000CPH |
| | IPC9850 | 21,000CPH |
| Placement accuracy | ±0.05mm(Cpk-1) | |
| Feeder inputs | Front-side fixed mechanical
feeder bank(Standard) | Max.40 in case of 8mm tape |
Front+rear-side fixed mechanical
feeder bank*1 | Max.80 |
Front+rear-side fixed electrical
feeder bank*1 | Max.160*2 |
*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)
