SMT machine Panason CM602 pick and place machine for PCB board Production line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Specification of CM602 pick and place machine
| model | Panasonic placement machine CM602, CM602-L high speed module placement machine NM-EJM8A |
| Substrate size | L 50 mm × W 50 mm ~ L 510 mm × W 460 mm |
| High-speed placement head | 12 nozzles |
| Mounting speed | 100 000 cph (0.036 s/chip) |
| Placement accuracy | ±40 μm/chip (Cpk greater or equal to1) |
| Component size | 0402 chip *5 ~ L 12 mm × W 12 mm × T 6.5 mm |
| Substrate replacement time | m0.9 s (under the best conditions for a substrate length of 240 mm or less) |
| power supply | Three-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA |
| Air pressure source | 1m0.49 MPa , 170 L /min(A.N.R.) |
| Equipment size | W 2 350 mm × D 2 290 mm *2 × H 1 430 mm *3 |
| weight | 3 400 kg |
Meraif's Customer In 35 Countries Around the WorldSuccessful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

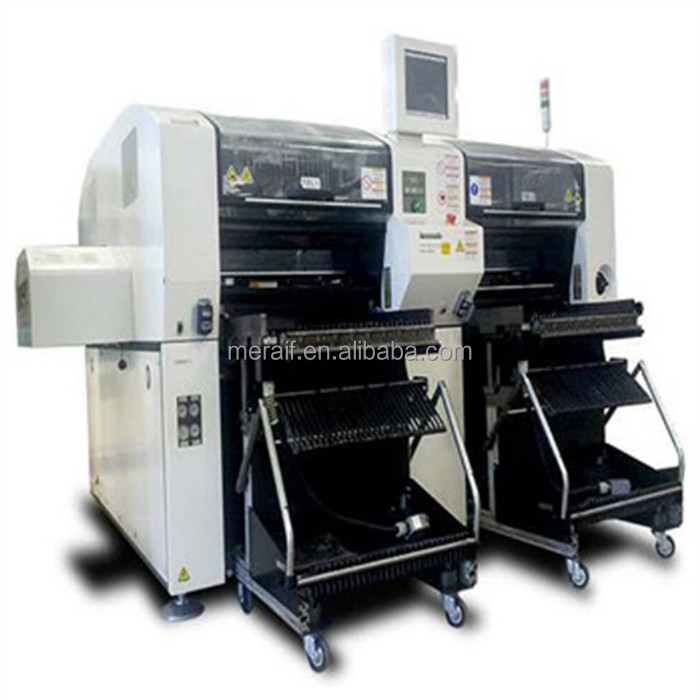

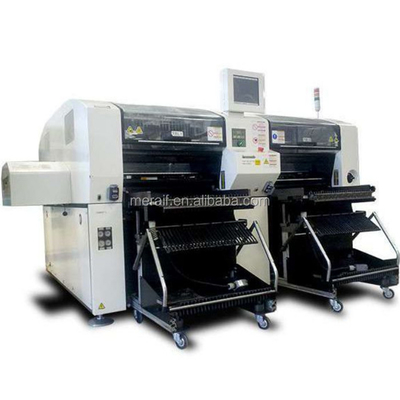

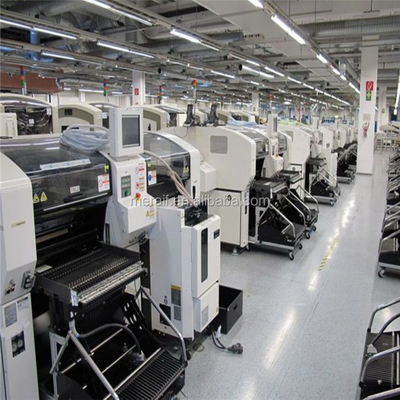

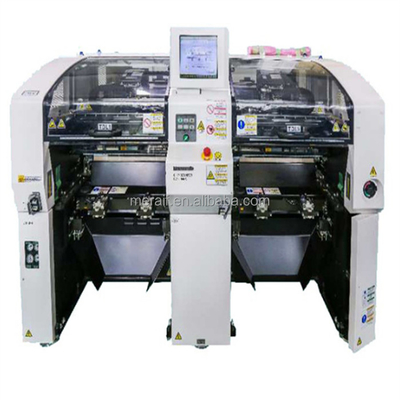

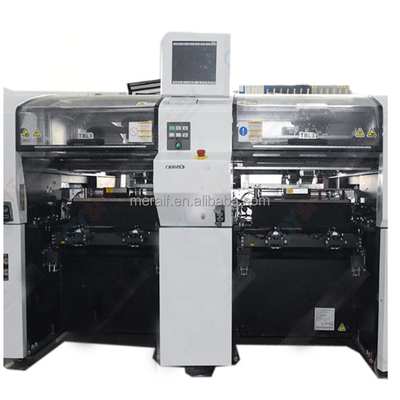

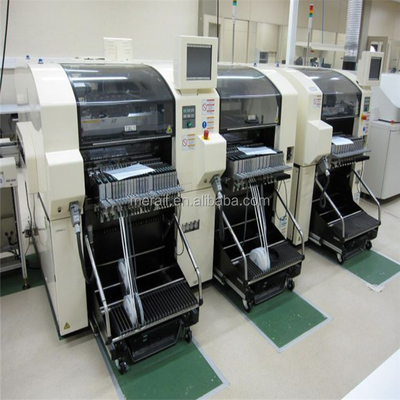

CM602 pick and place machine picture show
