Heller reflow oven
Heller Reflow Oven SMT reflow oven Heller 1836 MKIII 1936 MK7 reflow soldering machine
The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.
Heller 1836 MKIII 1936 MK7 feature
A. Multi-temperature zone design, more temperature control points, to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be controlled below 1%
C. Efficient production capacity, the average production cycle is 30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest depressurization time
E. Efficient flux recovery system to prevent flux residues
Heller 1836 MKIII 1936 MK7 Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!
| Machine Model | Heller 1936MK7 |
| Heating Zones | Top 10 / Bottom 10 |
| Cooling Zones | Top 3 |
| PCB Width | 50 - 560 mm |
| Max Conveyor Speed | 188 cm/min |
| Cross-Belt Temperature Tolerance | ± 2 ℃ |
| Accuracy of Temperature Controller | ± 0.1 ℃ |
| Conveyor Width Adjustment | Manual Motor Control |
| Operating System | Windows 10 |
| Overall Dimensions | W5900 x D1520 x H1440 mm |
| Typical Net Weight | Approx. 2120 kg |

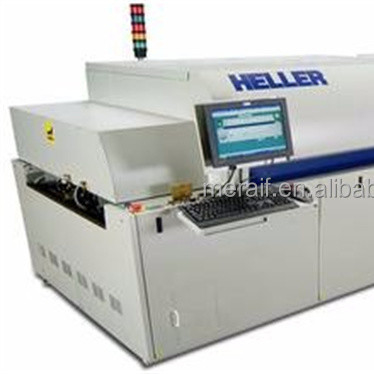

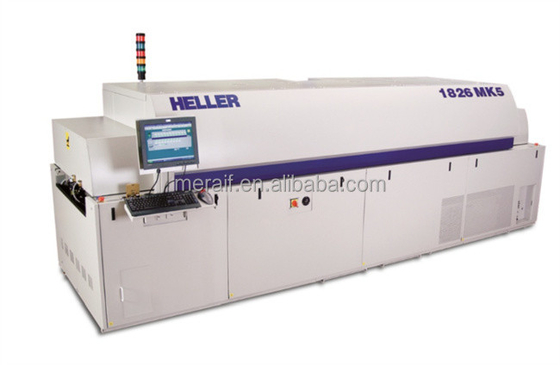

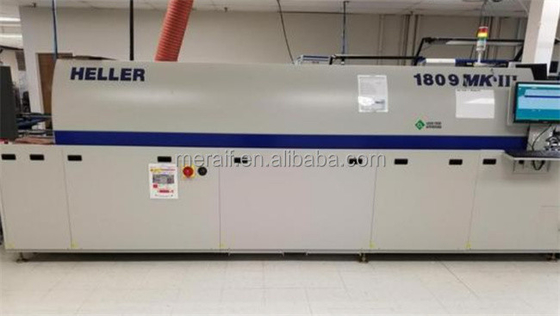

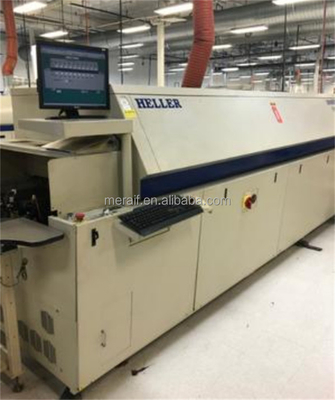

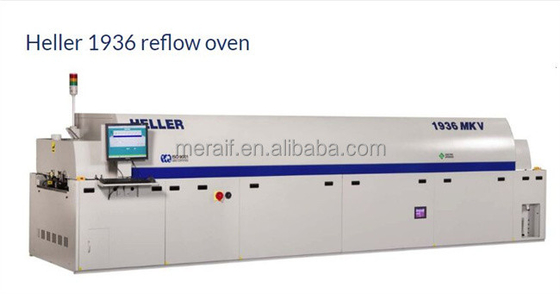

Heller 1836 MKIII 1936 MK7 picture show
