SMT GKG G-STAR printer Full Automatic Solder paste Printer
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.

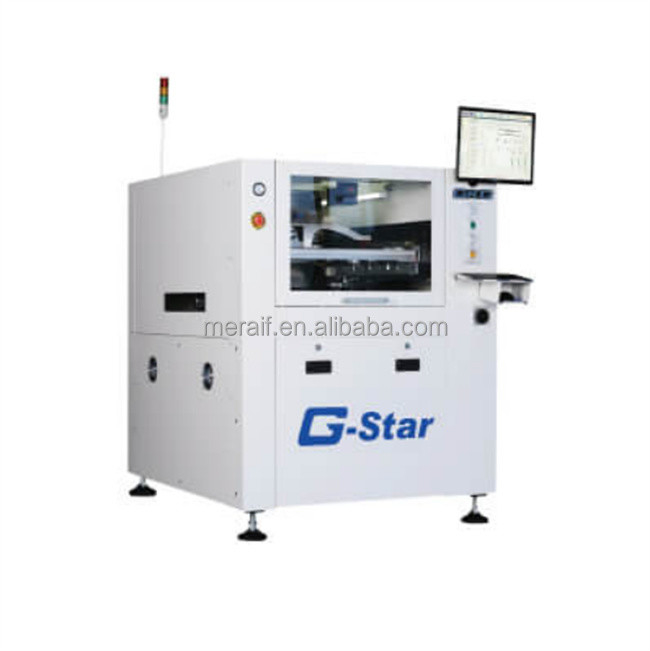

GKG G-STAR printer :
GKG G-STAR Full Automatic Solder paste Printer, Max PCB: 400 mm x340 mm,Smallest component:01005,PCB Max Weight:3 kg,size: 1158mm (L) x 1362mm (W) x 1463mm (H)
Above & beyond your expectations
Handling M Size board, G-Star is adept at delivering all your business needs. It successfully attained 01005 miniature printing. Through full contact with the stencil, our improved cleaning system ensures that any remaining paste in the mesh will be eliminated before printing. The 2D paste inspection function is able to detect insufficient paste, bridging and other defects. G-Star is also equipped with top and motorized side clamp, thereby ensuring superior printing quality.
| PERFORMANCE | |
| Machine Alignment Capability | 2Cmk @ ±12.5 microns 6 sigma |
| Process Alignment Capability | 2Cpk @ ±25 microns 6 sigma |
| Core Cycle Time | < 8.5 secs |
| (excluding printing & cleaning time) |
| Product Changeover Time | < 3 mins |
| New Product Set-up Time | < 10 mins |
| BOARD HANDLING | |
| Max. Size (L x W) | 400 mm x 340 mm |
| Min. Size (L x W) | 50 mm x 50 mm |
| Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Manual (Auto is option. PCB max. width reduced to 310 mm) |
| PCB Max. Weight | 3 kg |
| PCB Edge Clearance | 3 mm |
| PCB Bottom Clearance | 15 mm (7 mm with optional auto |
| PCB thickness adjustment) |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Top clamp (manual) and motorized side clamp |
| Support Method | Magnetic support pins, bars, blocks, Vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| | |
| OPERATOR INTERFACE | |
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 7 or Higher |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| PRINTING PARAMETERS | |
| Stencil Frame Size (L X W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±3 mm, Y: ±7 mm : ± 2° |
| Print Speed | 6~200 mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: Metal , Option: OPC, rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (software select) |
| | |
| Operating System | |
| Field-of-View (FOV) | 8 mm x 6 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~3.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max.100 windows to inspect missing & |
| insufficient (std.) |
| | |
| FACILITIES REQUIREMENT | |
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 2.5kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H) |
| Machine Weight | 1,000kg |
