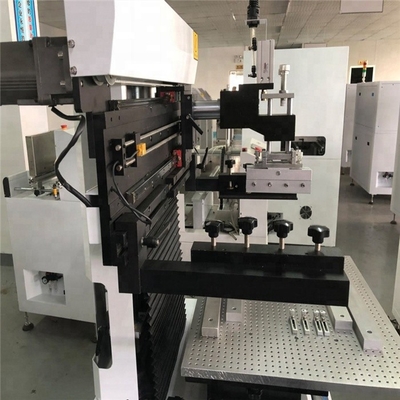

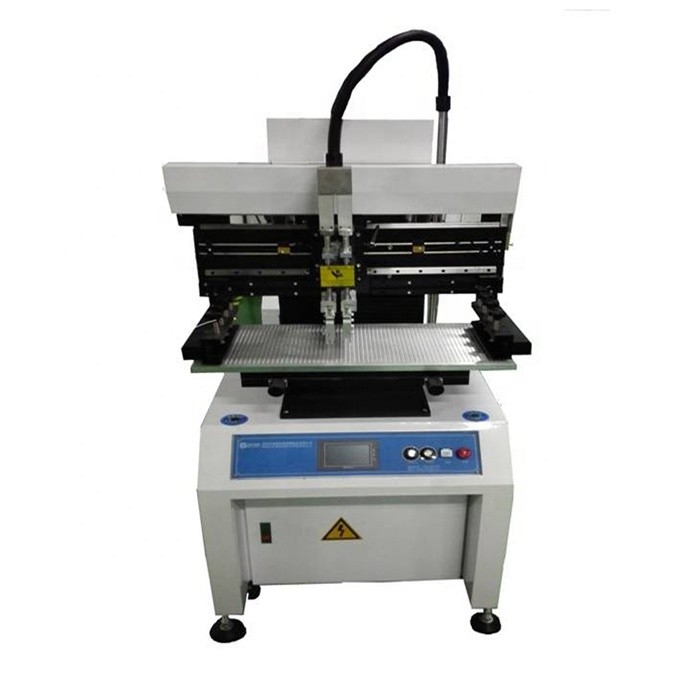

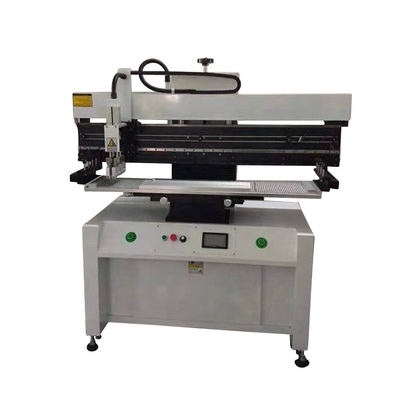

SMT PCB Printer Machine Using linear guide-ways,matching motor drive speed,ensure the printing stability and precision.

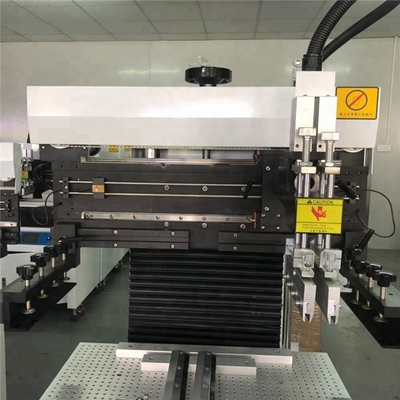

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.

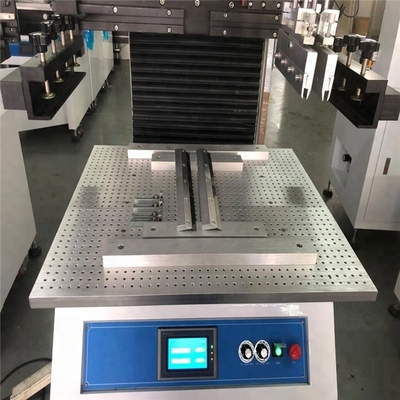

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
| Specifications | SMT Stencil Printer Machine |
| Working area | 300*400-300*400mm(300*600mm,300*1200mm) |
| Frame size | 370*470mm,420*520mm,550*650mm,1500*650mm |
| PCB thickness | 0.2-4.0mm |
| Voltage | Single phase 220V,50/60Hz,100W |
| Accuracy | +/- 0.05mm |
| Machine size | L1750*W1100*Hl650mm |
| Gross weight | 450kg |
