SAKI 2D AOI BF-Tristar II Specification:
SAKI 2D AOI BF-Tristar II
For high-speed selective solder inspection or simultaneous top/bottom PCB inspection, the model BF-Tristar II is the best solution. What used to take two separate production processes can now be done in one simple process. It can inspect top-side SMT and bottom-side reflow or through-hole components on both sides in one pass, including inspection for stray parts. By scanning the top side first on an outward route and then back side on a return route, it can reduce light reflection from the opposite sample side to assure stable inspection results. The compact machine can even be easily installed into a cell production line. Optional ultraviolet lighting for conformal coating inspection is also available on the BF-Tristar II.
In-line/Off-line Simultaneous Double-sided AOI
Suitable for the final inspection such as automatic detection of any dropped or scattered object during SMT process, solder inspection for large components attached after selective soldering
Double-side inspection scheme has made what used to be handled by 2 separate production processes into one simple process. The compact machine can be easily installed even into cell production line.
By scanning top side first on an outward route and then back side on a return route, it can reduce reflection of light from the opposite sample side to assure stable inspection results.
In the same way as our other 2D-AOI machines, BF-10BT provides 10um high resolution inspection by telecentric lens optical system by combining various algorithms and lighting types in simple construction with one axis operation. Multiple data handling capability are provided such as programming data change by barcode reading and data output to customers’ data servers.
Simultaneous Inspection for Both Sides of a PCBBF-Tristar II is the automated optical inspection system for inspecting both sides of double-sided PCB at once. It is equipped with two cameras for scanning each side of a PCB and has the Saki’s unique alternate scanning system. It also has 30 mm clearance at the both sides of a PCB. BF-Tristar II is suitable for inspections on the final process after the component assembly.Reducing the Inspection ProcessBF-Tristar II can inspect both sides of a PCB in one scanning. With this feature, it only needs the one machine while others need two for inspecting double-sided PCBs and enables space-saving.Suitable for Inspections on the Final ProcessBF-Tristar II can easily inspect defections on a top side of a PCB even after the SMT process of a bottom side. BF-Tristar II is suitable for inspections on the final process.High Resolution Imaging SystemWith 10 μm resolution, BF-Tristar II provides accurate and stable inspection of 01005 (0402) chips. Newly developed color capturing system takes only 8 seconds to scan M-size boards [250 mm × 330 mm].Advantage of Line Scan Visual InspectionExtra components on a PCB can be detected only by setting up one inspection window on the whole board. It is realized by the advantage of line scan method. Coaxial Overhead LightSoldering condition is inspected by illuminant irradiation of coaxial overhead lighting. Inspection is not affected by shadowing by neighboring tall components, therefore same library is available at any location on the board.New InterfaceRenewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library. The optional new function KPK, that detects difference between a surface of a PCB and component, simplifies to detect missing components. This realizes time reduction for inspection data making at launching production.Real-time Defection Management and AnalysisWith the real-time SPC display function, BF-Tristar II provides the real-time production management with more efficient productivity and quality. It also provides solutions for problems in defection managements, analysis, and manufacturing processes in combination with extensive optional systems (BF-Editor/BF-RP1/BF- View/BF-Monitor). | Model | SAKI 2D AOI BF-Tristar II |
| Resolution | 10μm |
| Board Size | 50×60 - 250×330mm, 2×2.4 - 10×13in |
| Board Thickness | 0.6 - 3.2mm, 24 - 126mils |
| Board Warp | +/-2mm, 79mils |
| PCB Clearance | Top: 30mm, 1.18in. Bottom: 30mm, 1.18in |
| Rotated Component Support | Available for 0 - 359°rotation (unit of 1°) |
| Inspection Categories | Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function. |
| Tact Time*1 *2 | Approx. 21sec. (250x330mm) |
| Image Scanning Time*1 | Approx. 8sec. (250x330mm) |
| Camera (Image Processing) | Line color CCD camera |
| Lighting | LED lighting system |
| Transfer Conveyor Method | Flat belt transfer |
| Transfer Conveyor Height | 900+/-20mm, 36+/-0.8in |
| Transfer Conveyor Width Adjustment | Manual |
| Operating System | Windows XP English Version |
| Optional System | BF-Editor / BF-RP1 / BF-Monitor / BF-View |
| Optional | 2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment |
| Electric Power Requirement | Single Phase ~100 - 120V / 200 - 240V +/-10%, 50/60Hz, 900VA |
| Air Requirement | 0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM |
| Usage Environment | 15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing) |
| Noise Level | 58.3dB |
| Dimensions W x D x H | 850 × 1295 × 1130mm, 33.5 × 51 × 45.5in |
| Weight | Approx. 500kg, 1102lbs |
| *1 If PCB size is smaller than 250x330mm, Image scannig time will be shorter than this values. *2 Including Image Scanning Time. |
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

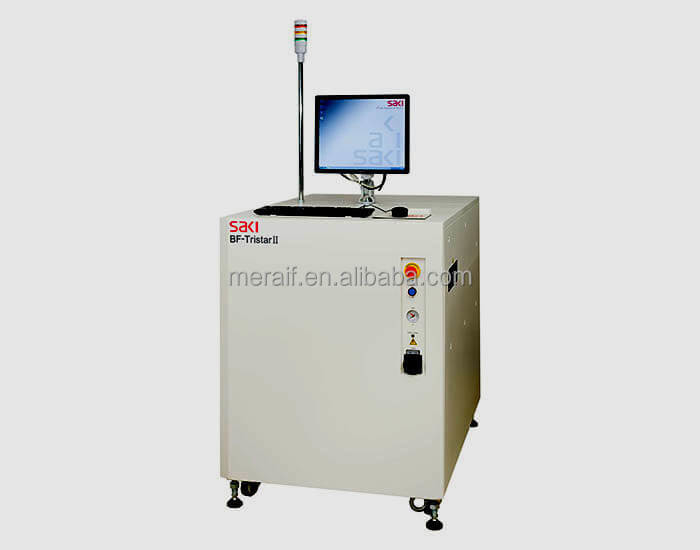

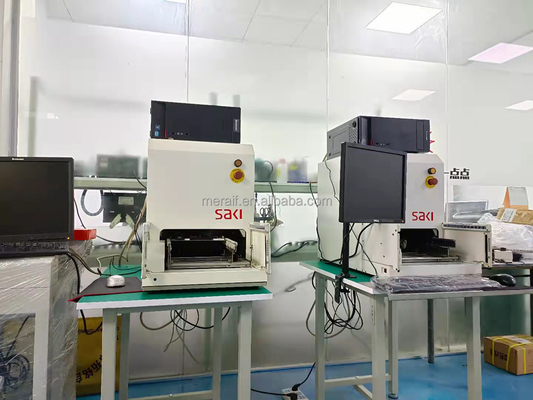

SAKI 2D AOI BF-Tristar II picture show
