Usd machine juki machine SMT JUKI JX-350 pick and place machine juki chip mpounter
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
JUKI JX-350 pick and place machine specification:
Juki JX-350
Flexible LED Mounter
The new JX-350 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.
It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.
- Ultra-Long Board Support
- High Speed
- High Accuracy
| Chip | 32,000CPH chip (Laser centering / Optimum)
21,000CPH chip (Laser centering / IPC9850) |
- From 0603 to 33.5mmsquare components
- JUKI laser centering for high speed, high accuracy placement
- Improved placement quality
- Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.
- High-precision placement of diffusion lenses
- Capable of up to 1,500 mm long board production, top class board size in industry.*
- Various supply methods *
*option |
| Board size | 1time clamping | 650mm×360mm |
| 2time clamping | 1,200mm×360mm |
| 3time clamping* | 1,500mm×360mm |
| Component height | 6mm / 12mm |
| Component size | 0603(0201) ~ 33.5mm |
| Placement speed (chip) | Optimum | 32,000CPH |
| IPC9850 | 21,000CPH |
| Placement accuracy | ±0.05mm(Cpk more than 1) |
| Feeder inputs | Front-side fixed mechanical
feeder bank(Standard) | Max.40 in case of 8mm tape |
Front+rear-side fixed mechanical
feeder bank *1 | Max.80 |
Front+rear-side fixed electrical
feeder bank *1 | Max.160 *2 |
| *1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder) |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

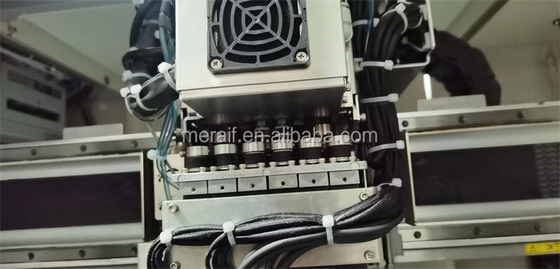

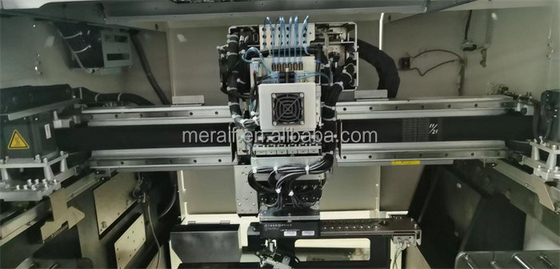

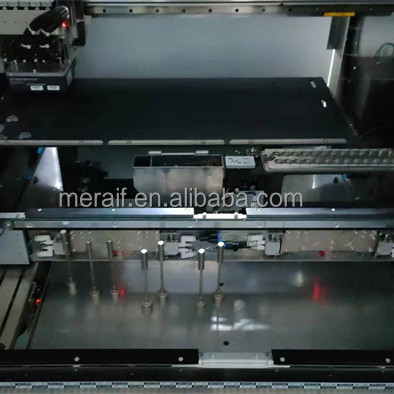

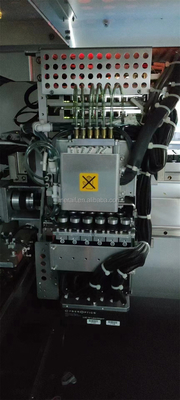

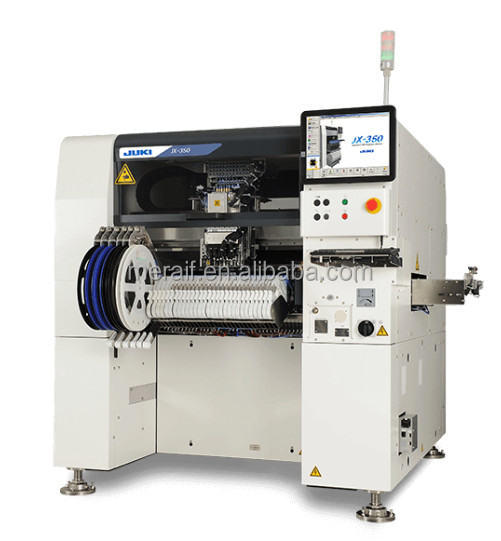

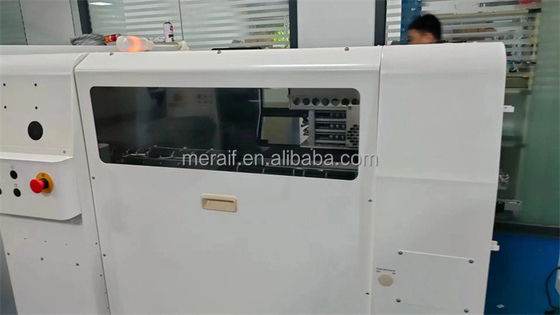

JUKI JX-350 pick and place machine picture show
