SMT machine Yamaha sigma-G5S II Pick and Place Machine

Product Details:

Place of Origin:	Japan
Brand Name:	Multi-Functional chip mounter
Model Number:	Yamaha sigma-G5S II Pick and Place Machine

Payment & Shipping Terms:

Price:	$60,000.00 - $1,100,000.00/pieces
Packaging Details:	SMT machine Yamaha sigma-G5S II
Supply Ability:	1000000 Piece/Pieces per Month SMT machine Yamaha sigma-G5S II

Contact Now

Detailed Product Description

Condition:	New	Weight (KG):	1000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Product Name:	SMT Machine Yamaha Sigma-G5S II
Skype:	Sensenhenhao	Whatsapp/wechat:	+8613424013606
Model Number::	YSM20 SMDCHIPMOUNTER	Applicable Components::	Nts: 0402~5050
Usage::	SMD LED SMT	Application::	SMT Assembly Production Line
Film Materials::	Privacy Material	Power Supply::	AC220V 50Hz / AC110V
Lead Time:	7-30days	Port:	Shenzhen

SMT machine Yamaha sigma-G5S II Pick and Place Machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

Specification of SMT machine Yamaha sigma-G5S II

Compact premium modular mounter featuring “1-head solution” with rotary head for high throughput & accuracy.

SIGMA Overdrive allows each head to share resources making programing easy and more cost effective. Each head can even pick from the others feeders.

Designed to minimize maintenance, down time is reduced or even taken offline with the use of linear motors, swappable cutter and nozzle stocker units.

Save with SIGMA’s lower cost of ownership. Reduce feeder inventory with flexible feeders. These 3 feeders cover 6 different component widths 12/16mm, 24/32mm, 44/56mm.

Model	sigma-G5S II
Applicable PCB dimensions	Single lane	L610×W510 mm(Optional: L1,200×W510 )
	Dual lane	L610×W250 mm(dual feed) L610×W415mm (single feed)
Mounting capability	High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Applicable components	High-Speed Multi (HM) Head	0201 to L44×W44×H12.7 mm or under
	Flexible Multi (FM) Head	1005 to L72×W72×H25.4 mm or under Connector: 150×26 mm
Mounting accuracy	High-Speed Multi (HM) Head	0201/03015: ±25um/80,000 CPH 0402: ±36 um/85,000 CPH 0603: ±40 um/90,000 CPH
	Flexible Multi (FM) Head	±0.015 mm
Component types	120 types max. (8 mm wide tape equivalent)
Power supply	3-phase AC200V ±10%, 50/60Hz
Air supply	0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
Exterior dimensions	L1,280×W2,240×H1,450 mm
Weight	Approx. 1,800 kg

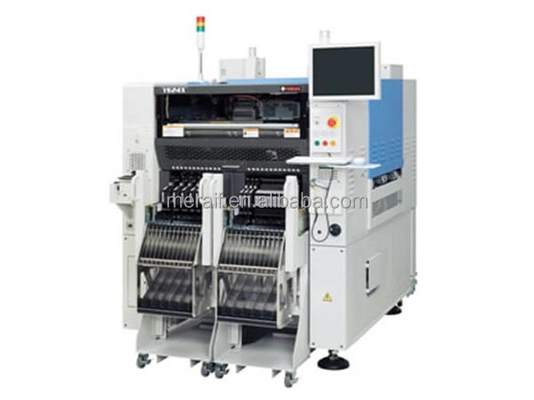

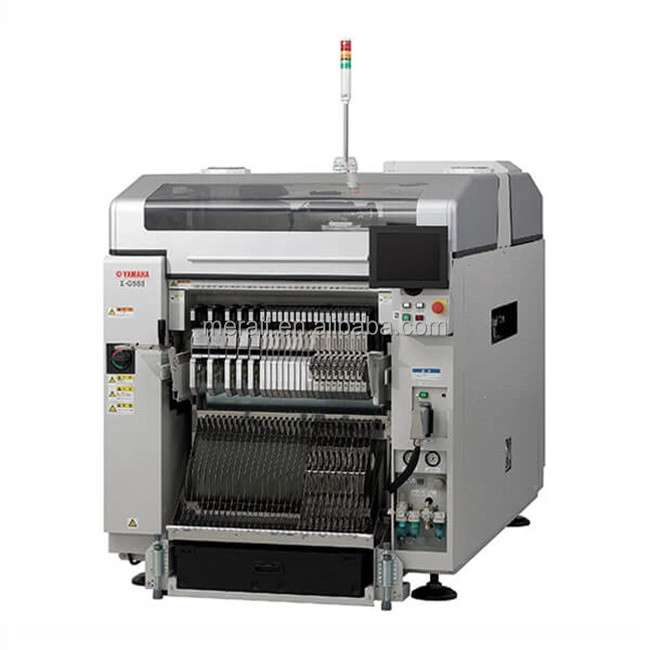

SMT machine Yamaha sigma-G5S II picture show

SMT machine Yamaha sigma-G5S II Pick and Place Machine
