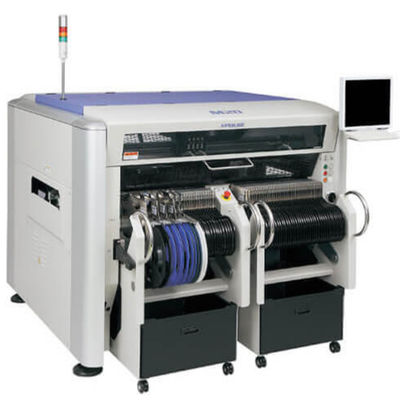

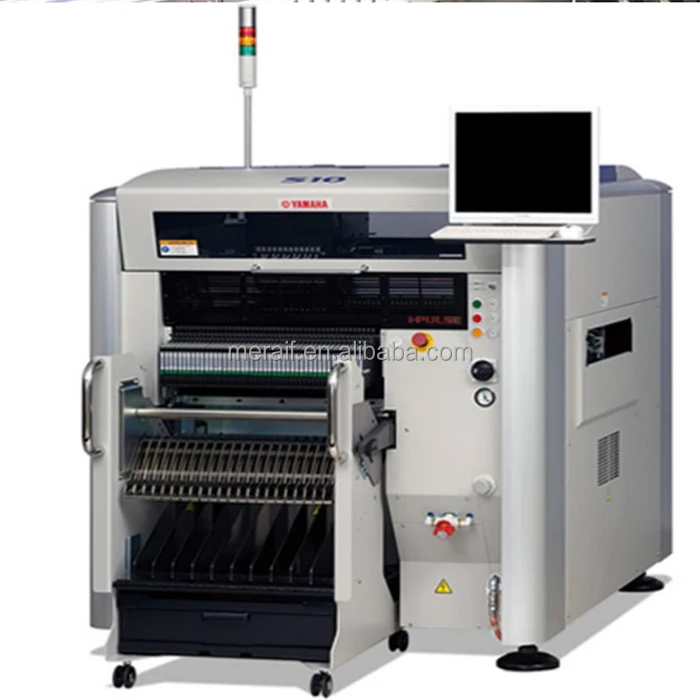

Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Specification of M20 chip monuter machine
Model | I-PulseM20 |
Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,480 x W510mm*1 |
Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L540 x W510mm |
Board thickness | 0.4 - 4.8mm |
Board flow direction | Left to right (Std) |
Board transfer speed | Max 900mm/sec |
Placement speed (4 heads + 1 theta) Opt. Cond. | 0.15sec/CHIP (24,000CPH) |
Placement speed (4 heads + 4 theta) Opt. Cond. | 0.15sec/CHIP (24,000CPH) |
Placement speed (6 heads + 2 theta) Opt. Cond. | 0.12sec/CHIP (30,000CPH)*2 |
Placement speed (4 heads + 1 theta) IPC9850 | 19,000CPH |
Placement speed (4 heads + 4 theta) IPC9850 | 19,000CPH |
Placement speed (6 heads + 2 theta) IPC9850 | 23,000CPH*2 |
Placement accuracy A (?+3?) | CHIP +/-0.040mm |
Placement accuracy B (?+3?) | IC +/-0.025mm |
Placement angle | +/-180 degrees |
Z axis control | AC servo motor |
Theta axis control | AC servo motor |
Component height | Max 30mm*3 (Pre-placed components: max 25mm) |
Applicable components | 0402 to 120x90mm, BGA, CSP, connector, etc. |
Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
Drawback check | Vacuum check and vision check |
Screen language | English, Chinese, Korean, Japanese |
Board positioning | Board grip unit, front reference, auto conveyor width adjustment |
Component types | Max 144 types (8mm tape), 36 lanes x 4 |
Transfer height | 900 +/- 20mm |
Machine dimensions, weight | L1750xD1750xH1420mm, Approx. 1450kg |
Power | 3-phase 200/208/220/240/380/400/416/440V +/-10% (Transformer included), 50/60Hz |
Max consumption, capacity | 1.1kW, 5.9kVA |
Air pressure, consumption | 0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R. |

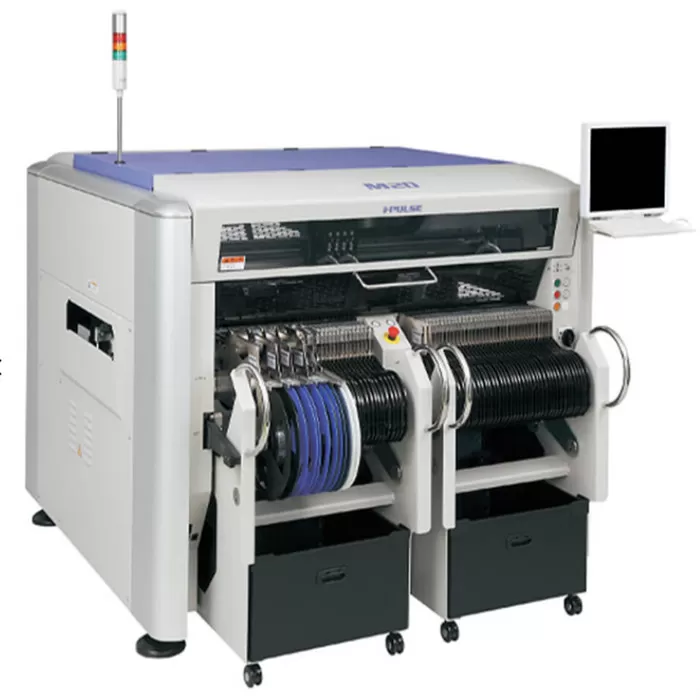

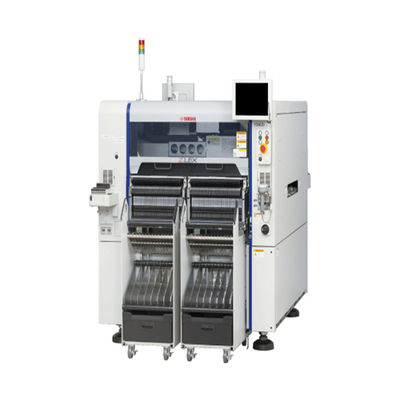

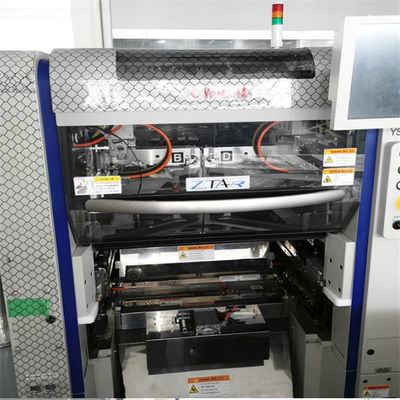

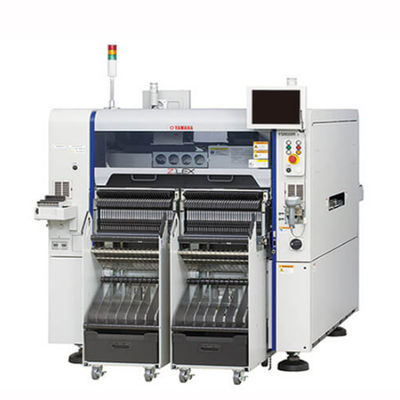

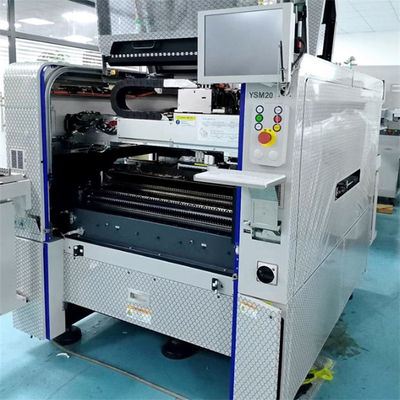

chip mounter picture show
